Advanced Vehicle Monitors

D7004 Vehicle Video Monitor

The MOSS-D7004 Monitor is a durable and versatile monitor for use in commercial vehicles. The shroud makes it easy to see the screen in brightly lit environments, and the 3 way video input makes it possible to monitor multiple video sources. A solid and versatile mounting bracket makes this monitor great for use in box trucks, tour buses, big rigs, and school buses.

• 7″ Vehicle reversing HD digital LCD monitor
• Resolution: 800(W)*R.G.B*480(H)
• Wide screen display: 16:9
• PAL / NTSC auto-switching
• Two ways of video input, 1 way audio input, with AV-IN input
• Four Pin connectors
• Built-in display delay function when reversing with two to five seconds adjustable
• Image can be adjustable up/down
• Built-in speaker
• Multi-language display: English, Chinese, Italian, German and French
• View angle range: (left/right) 65o (top) 40o (down) 15o
• Automatically adjust light sensor
• IR Remote controller
• OSD menu display
• With Stand & U-shape bracket
• Detachable sunshade Shroud
• Dimension: 180(L)*121(W)*23(H) mm
• DC9~24V wide voltage

The MOSS-D7004Q Monitor gives the driver a view of  4 cameras at the same time. The video feeds are displayed on four quadrants on the screen. The sturdy housing and solid mounting bracket make this 7 inch monitor perfect for large vehicles such as buses, tractor trailers. and even heavy machinery.

An audio input makes this monitor useful for mobile DVR playback, or to hear what’s going on behind the vehicle while making a delivery or backing up.

The MOSS-D7004Q Monitor gives the driver a view of  4 cameras at the same time. The video feeds are displayed on four quadrants on the screen. The sturdy housing and solid mounting bracket make this 7 inch monitor perfect for large vehicles such as buses, tractor trailers. and even heavy machinery.

D7004Q Vehicle Quad Video Monitor

• An audio input makes this monitor useful for mobile DVR playback, or to hear what’s going on behind the vehicle while making a delivery or backing up.
• Seven-inch Vehicle reversing HD Digital Quad LCD monitor
• Resolution: 800(W)*R.G.B*480(H)
• Wide screen display: 16:9
• PAL / NTSC auto-switching
• Four ways video input, One way audio input
• Built-in Quad
• Full image / 2 images / 3 images / 4 images screen modes
• Four Pin connectors
• Built-in display delay function when reversing with 2~5 seconds adjustable
• Image can be adjustable up / down
• Built-in speaker
• Multi-language display: English, Chinese Italian, German and French
• View angle range: (left/right) 65o (top) 40o (down) 15o
• Automatically adjust light sensor
• IR Remote controller
• OSD menu display
• With Stand & U-shape bracket
• Detachable Sunshade Shroud
• Dimension: 180(L)*121(W)*23(H) mm
• DC9~24V wide voltage

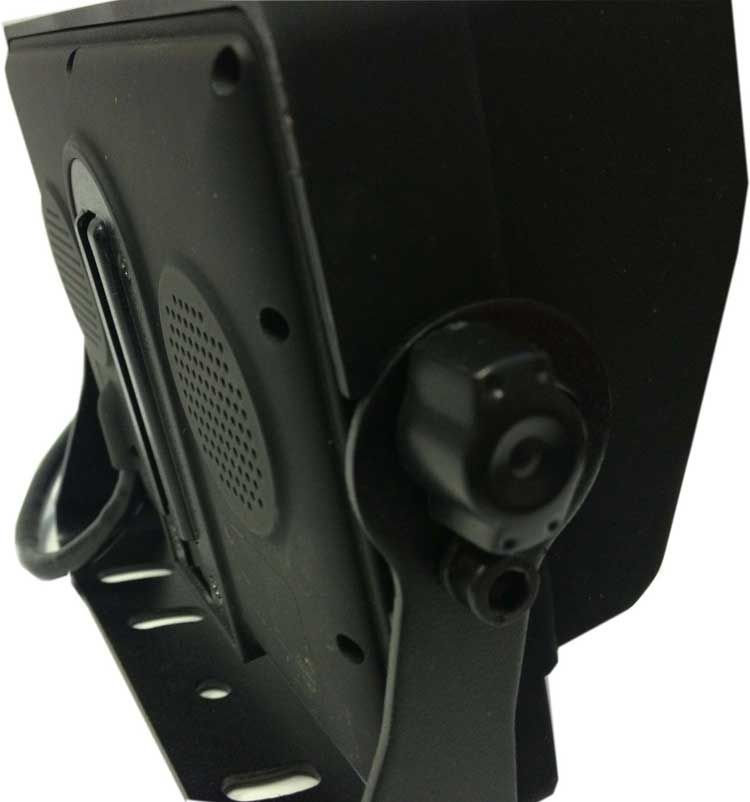

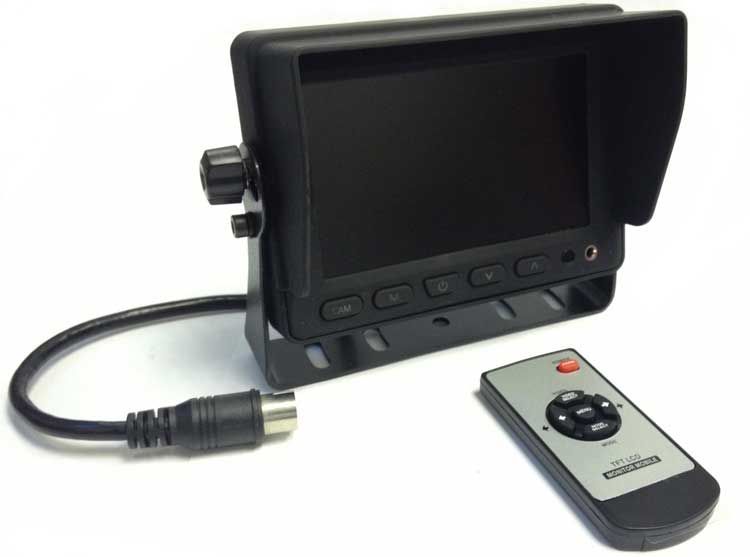

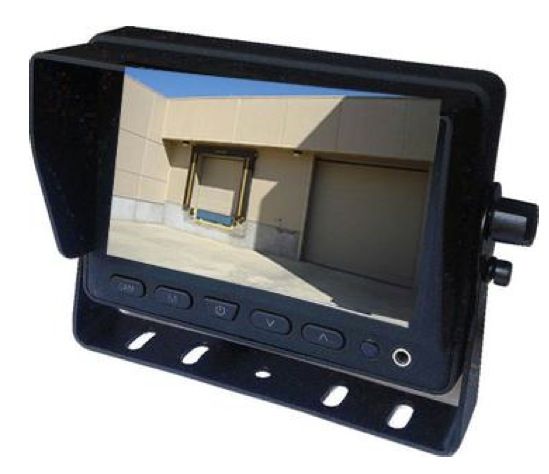

MOSS-D5001 Commercial Automotive Video Monitor

The Moss-D5001 Monitor is a durable and versatile monitor for use in commercial vehicles. The monitor can be mounted to a vehicle dashboard for easy access. Monitor has inputs for up to three cameras or video sources.

It’s five-inch size makes the D5001 monitor great for mid sized vehicles and even larger trucks.

MOSS-D5001

• Five-inch vehicle rear view HD Digital Monitor
• Resolution:800(W)*R.G.B*480(H) dots
• RCA three ways video input, two ways audio input, with Front AV-IN input
• PAL/NTSC system auto-switching
• Built-in Speaker
• Reference point & time control for reverse gear settings
• 4pin connector
• DC9~32V wide voltage

MOSS-D5001Q Commercial Quad Automotive Video Monitor

The Moss-D5001Q Monitor is a durable and versatile monitor for use in commercial vehicles. The monitor can be mounted to a vehicle dashboard for easy access. Monitor has inputs for up to four cameras or video sources.

School buses, trucks, RV’s, and trailers all benefit from this versatile camera. Applications can include mobile DVR systems, backup cameras, and other monitoring systems.

MOSS-D5001Q

• Five-inch vehicle reversing HD digital quad monitor
• Resolution:800(W)*R.G.B*480(H) dots
• Wide screen display: 16:9
• RCA 4 ways video input, 1 way audio input with Front AV-IN input
• PAL/NTSC system auto-switching
• Built-in Quad feature
• Reference point & time control for reverse gear settings
• 4pin connector
• Dimension: 141(L)*103(W)*25(H) mm
• DC9~32V wide voltage

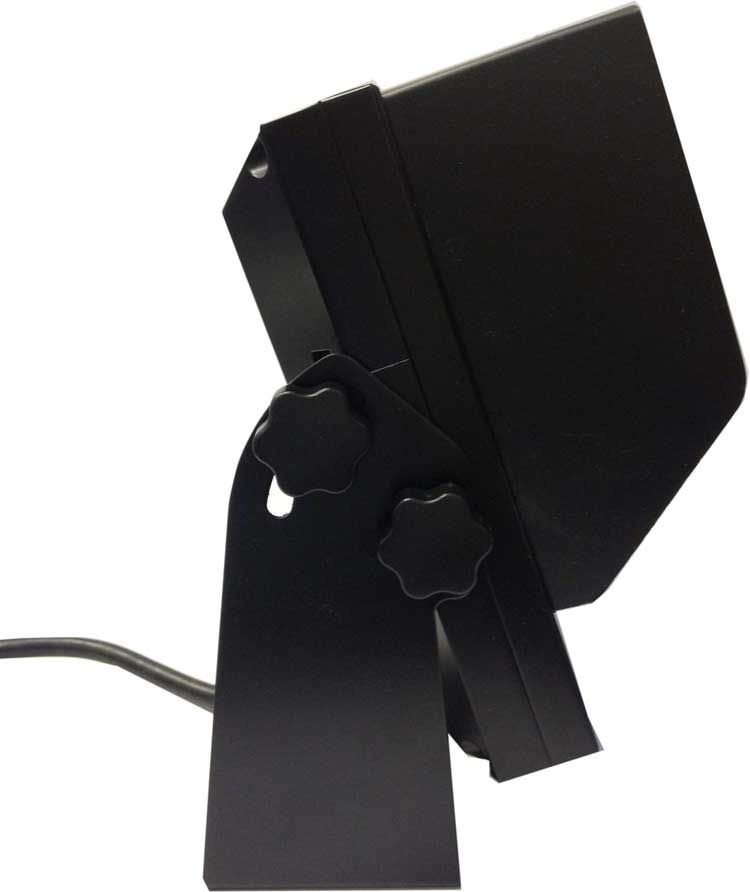

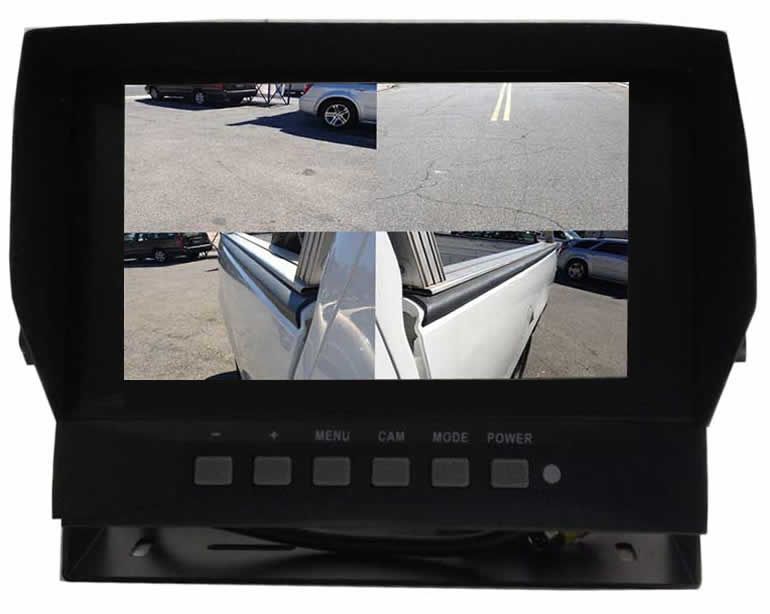

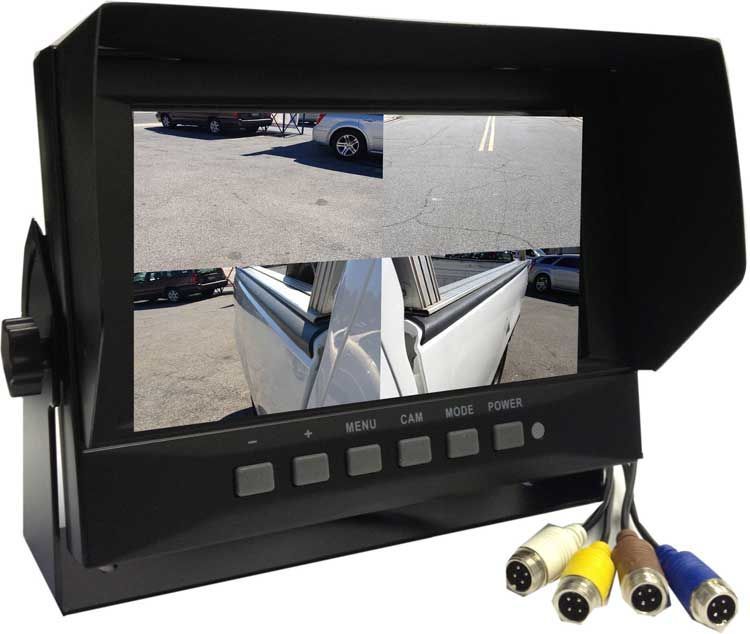

MOSS-D7002Q Commercial Quad Automotive Video Monitor

The Moss-D7002Q Monitor is a powerful solution for multiple camera viewing. Use this monitor to view multiple angles in large vehicles, or to view other video sources concurrently. The shroud makes the screen more visible in bright sunlight, while the heavy duty mounting bracket enables a solid bolt-on installation suitable for heavy machinery and trucks alike.

MOSS-D7002Q

• Seven-inch waterproof HD Digital Quad LCD Monitor
• Resolution:800(W)*R.G.B*480(H) dots
• RCA four ways video input, one way audio input with AV-IN input
• PAL/NTSC system auto-switching
• Built-in Speaker
• Reference point & time control for reverse gear settings
• 4pin connector
• DC9~32V wide voltage

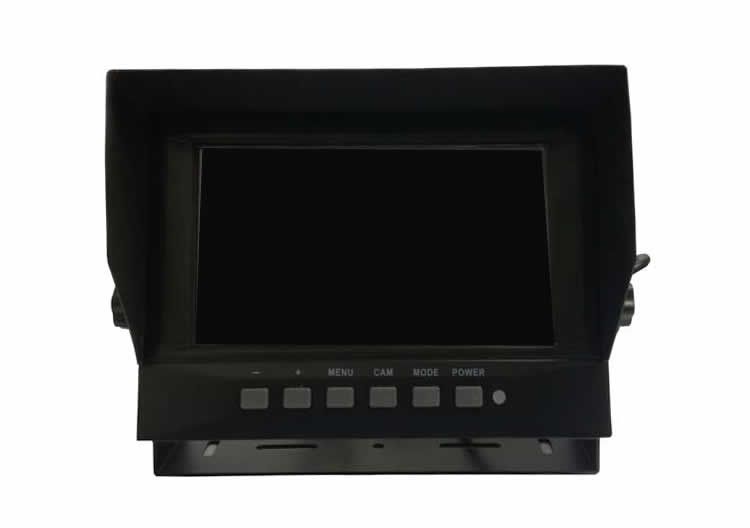

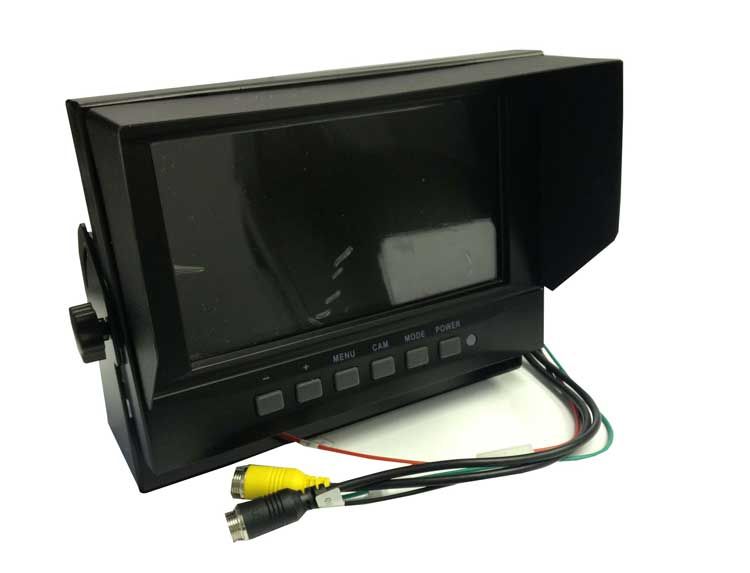

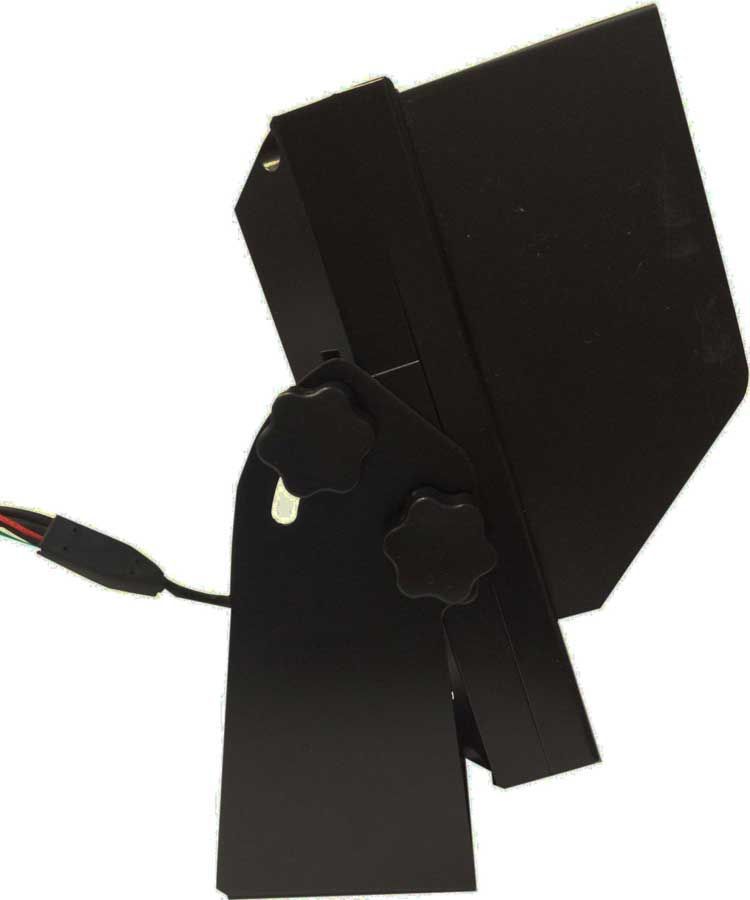

MOSS-D7002 Commercial Heavy Duty Automotive Video Monitor

The Moss-D7002 Monitor comes with a shroud to block out sun rays in bright situation. In addition to being a great all-around monitor for backup cameras and DVR monitoring, the D7002 can be used in vehicles that have more exposure to sunlight such as cranes and machinery.

MOSS-D7002

• Seven-inch waterproof HD Digital LCD Monitor
• Resolution:800(W)*R.G.B*480(H) dots
• RCA two ways video input, one way audio input with AV-IN input
• PAL/NTSC system auto-switching
• IP69 waterproof function design
• Built-in Speaker
• Reference point & time control for reverse gear settings
• 4pin connector
• DC9~32V wide voltage

MOSS-043LE Pop Up Automotive Video Monitor

The Moss-043LE Monitor is capable of folding into a slim enclosure, which is perfect for space-sensitive locations. Additionally, it’s fold-up design may decrease the chance of theft by making the device less visible when not in use.  Video input can be used for reverse camera, mobile DVR, or even mobile entertainment applications.

MOSS-043LE

• 4.3″ car rear view pop up Dash mount LCD Monitor
• Resolution:480(W)*R.G.B*234(H) dots
• two ways video input
• PAL/NTSC system auto-switching
• Reference point & time control for reverse gear settings
• RCA connector
• DC9~32 V wide voltage

MOSS-035LE Automotive Video Monitor

The Moss-035LE Monitor is small enough for compact vehicles, and rugged enough for commercial use. Perfect for backup cameras, the MOSS-035LE comes with 2 video inputs for added versatility.

• MOSS-035LE
• 3.5″ car rear view pop-up Dash mount LCD Monitor
• Resolution:320(W)*R.G.B*234(H) dots
• 2 ways video input
• PAL/NTSC system auto-switching
• Built-in Speaker
• Reference point & time control for reverse gear settings
• RCA connector
• DC9~32V wide voltage

MOSS-043LA LCD Monitor

The MOSS-043LA LCD monitor provides a high quality view of backup cameras on small to medium sized trucks. A variety of mounting options allows for an on-dash, or lower dash installation for easy access by vehicle operators.

• 4.3″ car rear view LCD Monitor
• Resolution: 480(W)*R.G.B*234(H) dots
• Wide screen display: 4:3
• PAL/NTSC system auto-switching
• Two ways video input
• RCA connector
• Backup function for vehicles
• Support normal /mirror switching
• Support contrast, brightness adjustable
• DC9~32V wide voltage

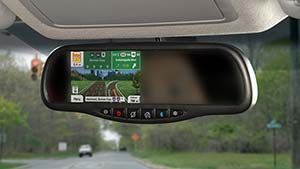

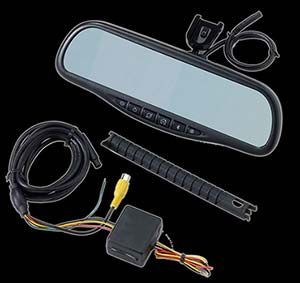

ADVENT NM100 Navigation/Bluetooth/Rear View Monitor Mirror

The Advent NM100 replacement rearview mirror provides a truly cost-effective navigation solution for almost any vehicle! The NM100 comes with built-in iGo Primo Navigation with 3D mapping (the same system that is supplied in their “OE” navigation systems), a built-in handsfree Bluetooth system with phone book accessibility as well as a 4.3-inch LED backlit digital monitor with touch screen. This system includes internal microphone, speaker and GPS antenna as well as universal GM/Ford/Chrysler windshield mounts.

Navigation Safety Mode: This feature shuts off the monitor until your next turn or Navigation instruction needs to be displayed. The next turn will come up and then the screen will shut off unless your next instruction is less than one minute away.

Bluetooth Mode: Bluetooth can connect to one phone at a time, and can dial from the phone, from the mirror’s touchpad, or from the call history list in the mirror.

Rear Camera Mode: Can be paired with any display any standard rear camera, allowing camera operation in reverse, or can display factory rear camera if previously displayed in factory mirror (additional labor may be required).  Aftermarket camera can also be wired as a “lane change” camera, allowing camera display to be switched on demand while driving (additional labor may be required).

• Built-in iGo Primo navigation with 19 on-screen display languages
• US and Canada maps with 11 million POIs
• Text-to-Speech recorded voice guidance in English, French and and Spanish
• Built-in Bluetooth with Phone Book
• Internal Microphone, Speakers and GPS Antenna

MOSS-4118 Rear View Mirror Monitor

The Moss-4118 is a fully functional rear view mirror, with a “hidden”  4″ screen in the right side. When powered up, the video monitor and mirror can be used concurrently. A backup camera wired to the MOSS-4118 would allow the driver to keep his eyes on the rear area of the vehicle, while also viewing the smaller area that the backup camera shows. This is the ultimate in rear visibility.

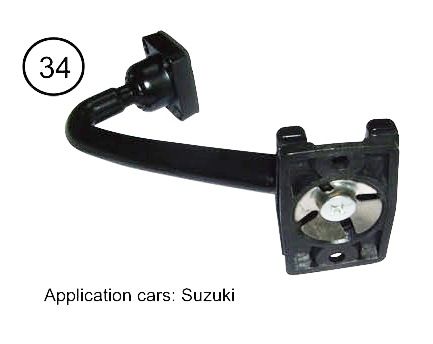

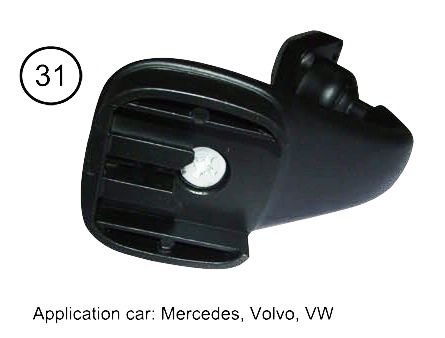

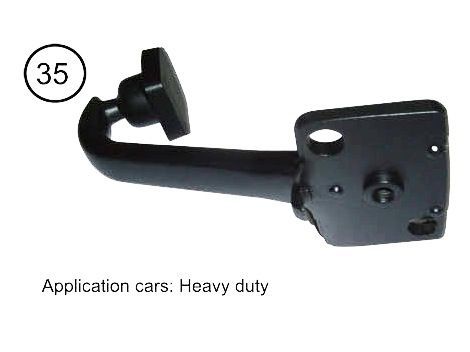

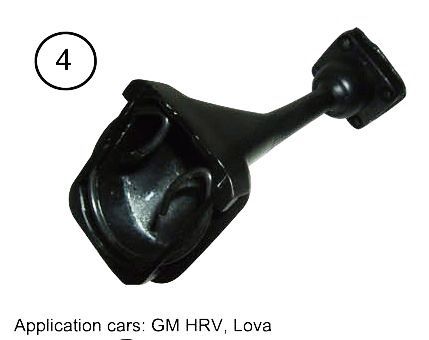

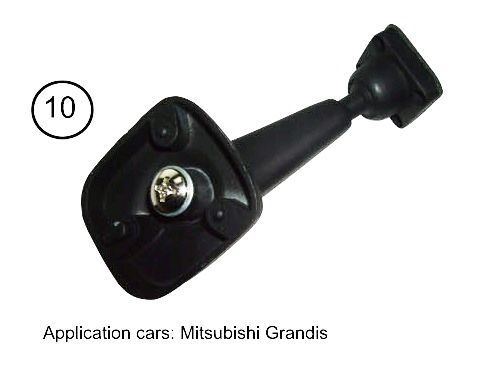

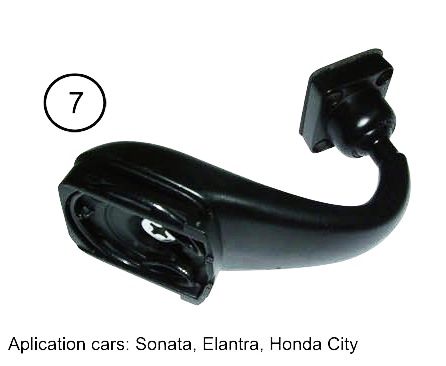

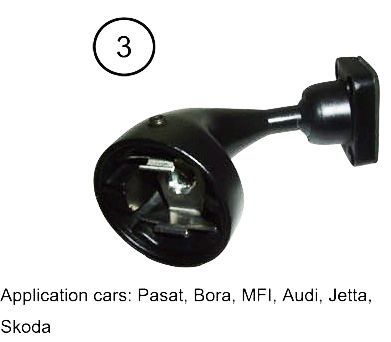

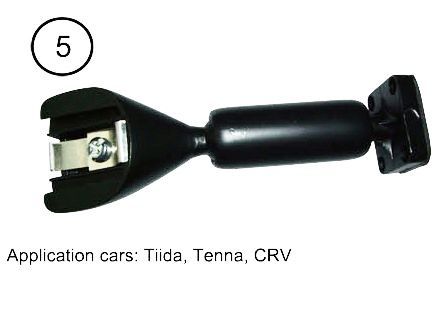

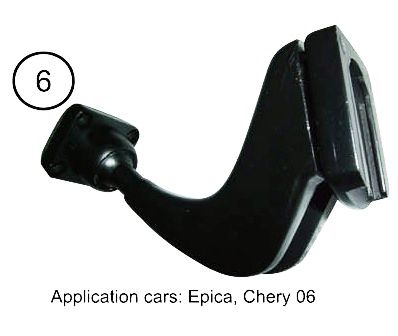

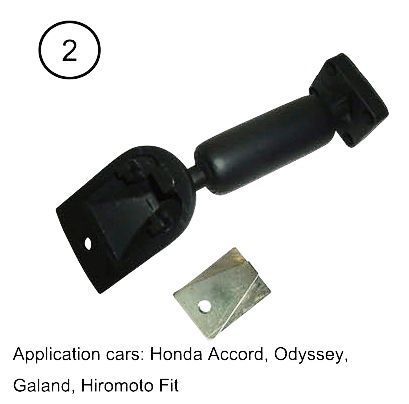

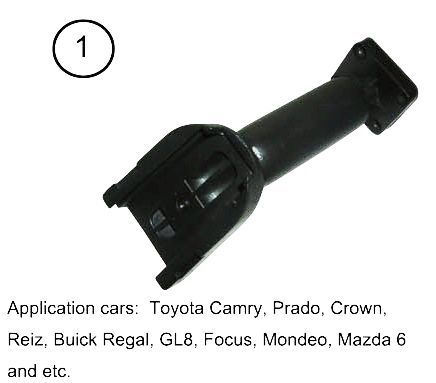

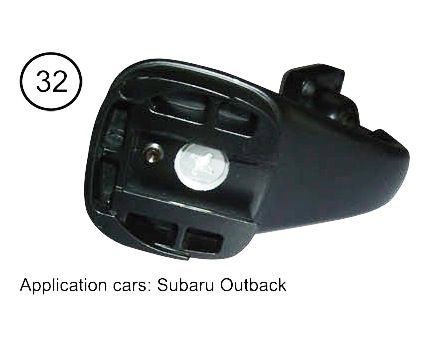

For a professional installation, our MOSS rear view mirror brackets fit your windshield just like factory, with specific brackets for different model vehicles. Click here to view our brackets.

• OEM style mirror/ monitor
• Original pedestal built in mirror, with wire harness to conceal wiring
• High resolution 4” Digital LCD display
• Resolution: 480 * RGB * 272
• Super high brightness: 800cdm
• Auto Brightness
• Automatic activation when you select reverse gear
• Additional pedestal mounts available: (Toyota, Dodge, Honda, Mazda, Suzuki, etc.)
• Dual video input, reverse video priority
• Brightness OSD

MOSS-4116B Rear View Mirror Monitor

The Moss-4118B is a fully functional rear view mirror, with a “hidden” 4.3 screen in the right side. When powered up, the video monitor and mirror can be used concurrently. A backup camera wired to the MOSS-4118B would allow the driver to keep his eyes on the rear area of the vehicle, while also viewing the smaller area that the backup camera shows. This is the ultimate in rear visibility.

For a professional installation, our MOSS rear view mirror brackets fit your windshield just like factory, with specific brackets for different model vehicles. Click here to view our brackets.

• Screen: 4.3″ Color TFT LCD
• Resolution: 480*RGB*272
• Super High Brightness: 800 cd/m²
• Contrast: 300:1
• Display format: 16:9 (4:3)
• Same size as original car rear view monitor
• Video input: 2 (V2 Reserved for Reverse Camera Input)
• OSD menu
• Voltage: 12V
• Consumption: 2W MAX
• Body Weight: 290g
• Mounting: Clip on mounting, easy installation

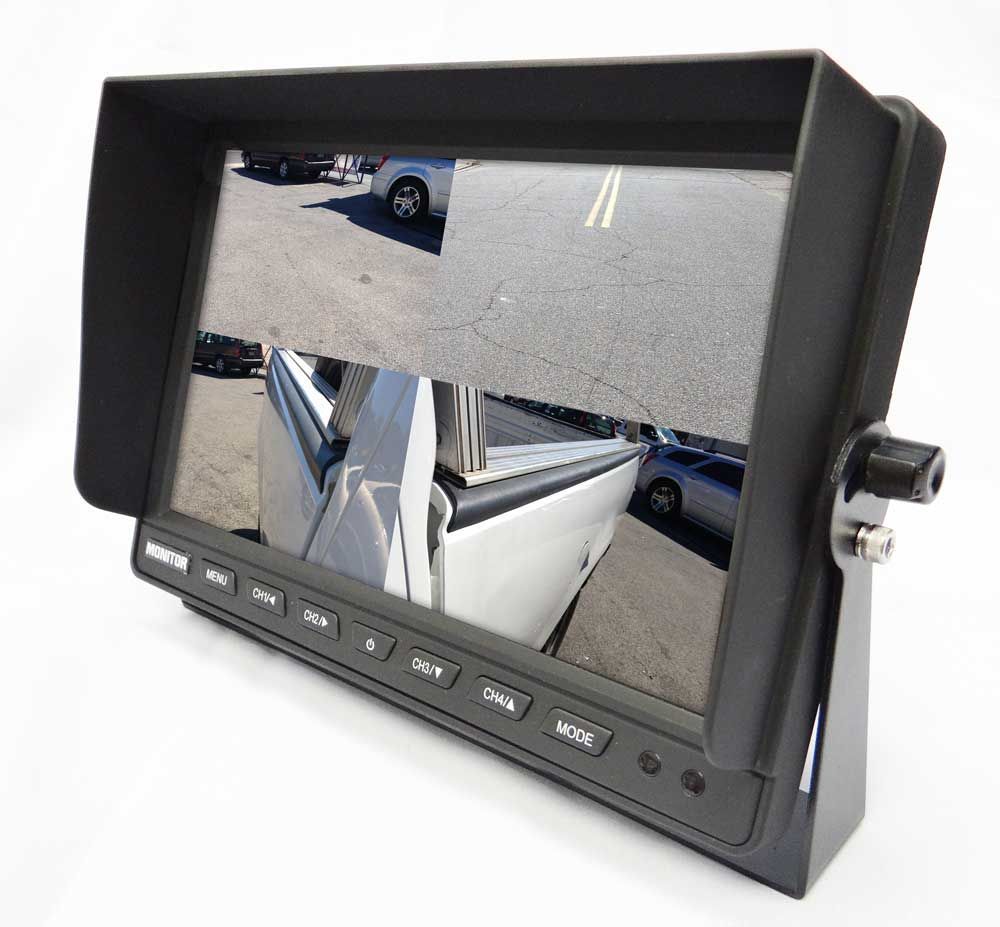

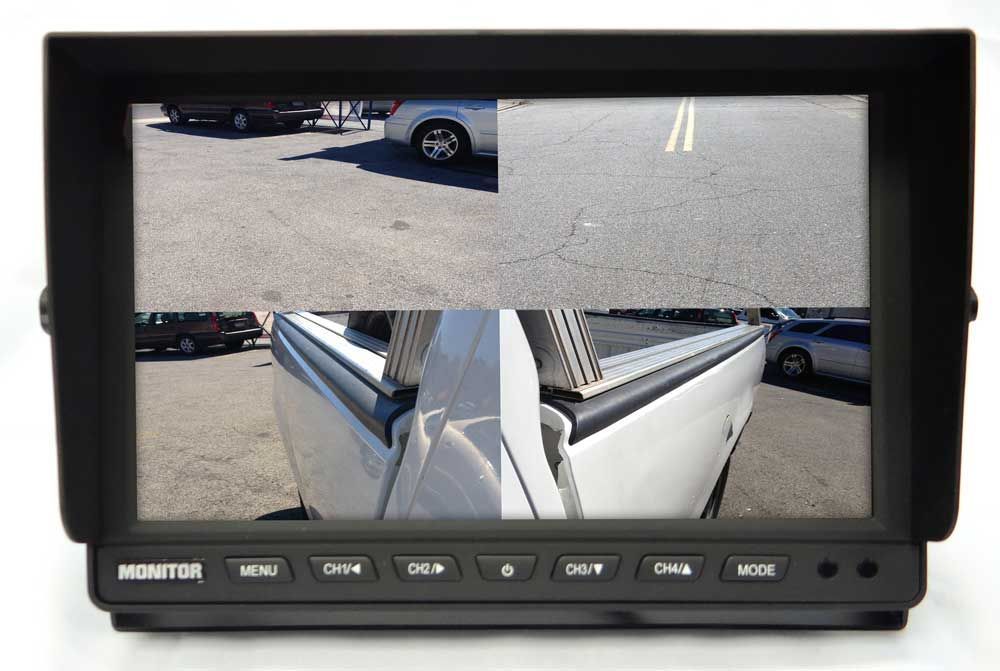

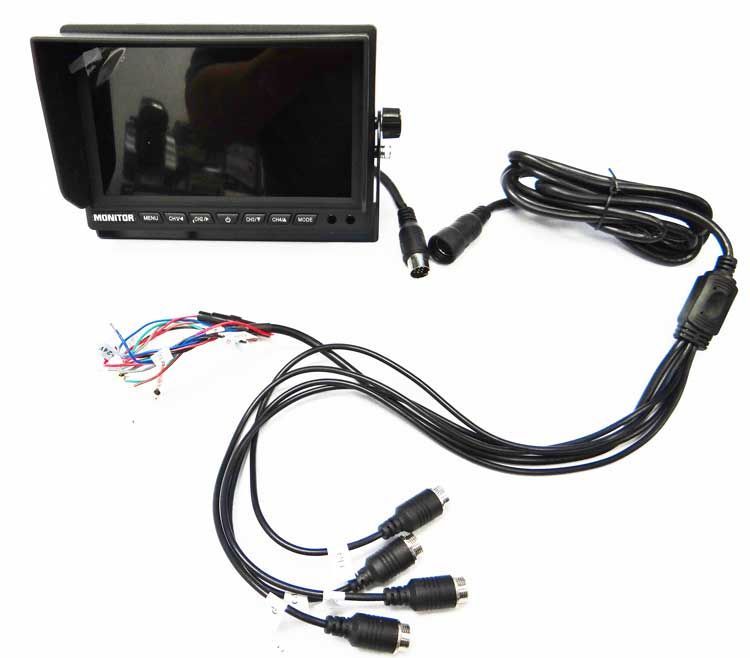

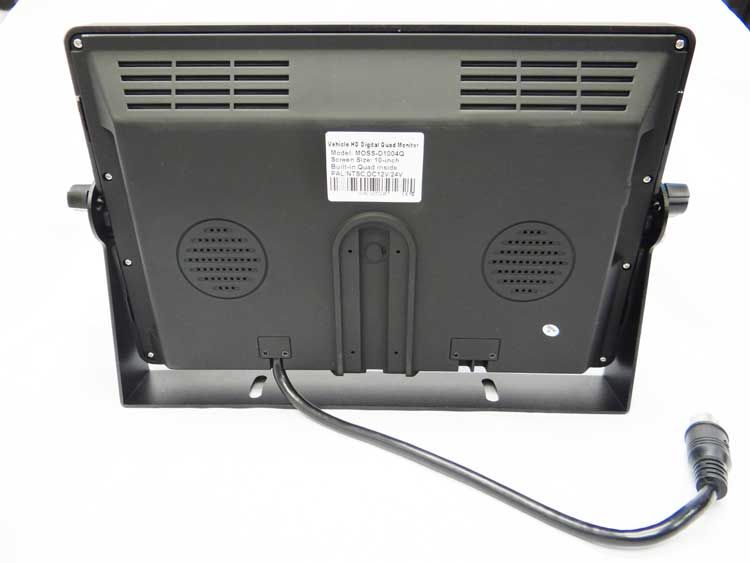

D1004Q Vehicle Quad Video Monitor

The MOSS-1004Q Monitor gives the driver a view of  4 cameras at the same time. The video feeds are displayed on four quadrants on the screen. The sturdy housing and solid mounting bracket make this 7 inch monitor perfect for large vehicles such as buses, tractor trailers. and even heavy machinery.

An audio input makes this monitor useful for mobile DVR playback, or to hear what’s going on behind the vehicle while making a delivery or backing up.

• 10″ vehicle reversing quad HD digital LCD monitor
• Resolution: 1024(W)*R.G.B*600(H)
• Wide screen display: 16:9
• PAL / NTSC auto-switching
• four ways video input, 1 way audio input, with AV-IN input
• Four ways video display for reversing (front, rear, left, right)
• Built-in quad
• Full image/two images/3images/four image screen modes
• Four Pin connectors
• Built-in display delay function when reversing with two to five seconds adjustable
• Image can be adjustable up / down
• Built-in speaker
• Multi-language display: English, Chinese, Italian, German and French
• View angle range: (left/right) 65o (top) 40o (down) 15o
• Automatically adjust light sensor
• IR Remote controller
• OSD menu display
• With Stand & U-shape bracket
• Detachable Sunshade Shroud
• Dimension: 285(L)*184(W)*34(H) mm
• DC9~24V wide voltage

The MOSS-1004Q Monitor gives the driver a view of  4 cameras at the same time. The video feeds are displayed on four quadrants on the screen. The sturdy housing and solid mounting bracket make this 7 inch monitor perfect for large vehicles such as buses, tractor trailers. and even heavy machinery.

An audio input makes this monitor useful for mobile DVR playback, or to hear what’s going on behind the vehicle while making a delivery or backing up.

• 10″ Vehicle reversing Quad HD digital LCD monitor
• Resolution: 1024(W)*R.G.B*600(H)
• Wide screen display: 16:9
• PAL / NTSC auto-switching
• 4 ways video input, 1 way audio input, with AV-IN input
• 4 ways video display for reversing (front, rear, left, right)
• Built-in Quad
• Full image/2 images/3images/4 image screen modes
• 4 Pin connectors
• Built-in display delay function when reversing with 2~5 seconds adjustable
• Image can be adjustable up / down
• Built-in speaker
• Multi-language display: English, Chinese, Italian, German and French
• View angle range: (left/right) 65o (top) 40o (down) 15o
• Automatically adjust light sensor
• IR Remote controller
• OSD menu display
• With Stand & U-shape bracket
• Detachable Sunshade Shroud
• Dimension: 285(L)*184(W)*34(H) mm
• DC9~24V wide voltage

Seven-inch vehicle reversing HD digital LCD monitor

• Resolution: 800(W)*R.G.B*480(H)
• Wide screen display: 16:9
• PAL / NTSC auto-switching
• Two ways of video input, 1 way audio input, with AV-IN input
• Four Pin connectors
• Built-in display delay function when reversing with two to five seconds adjustable
• Image can be adjustable up/down
• Built-in speaker
• Multi-language display: English, Chinese, Italian, German and French
• View angle range: (left/right) 65o (top) 40o (down) 15o
• Automatically adjust light sensor
• IR Remote controller
• OSD menu display
• With Stand & U-shape bracket
• Detachable sunshade Shroud
• Dimension: 180(L)*121(W)*23(H) mm
• DC9~24V wide voltage

The Moss-D5001 Monitor is a durable and versatile monitor for use in commercial vehicles. The monitor can be mounted to a vehicle dashboard for easy access. Monitor has inputs for up to 3 cameras or video sources.

It’s five-inch size makes the D5001 monitor great for mid sized vehicles and even larger trucks.

MOSS-D5001

• 5″ vehicle rear view HD Digital Monitor
• Resolution:800(W)*R.G.B*480(H) dots
• RCA three ways video input, two ways audio input, with Front AV-IN input
• PAL/NTSC system auto-switching
• Built-in Speaker
• Reference point & time control for reverse gear settings
• 4pin connector
• DC9~32V wide voltage

The Moss-D7002Q Monitor is a powerful solution for multiple camera viewing. Use this monitor to view multiple angles in large vehicles, or to view other video sources concurrently. The shroud makes the screen more visible in bright sunlight, while the heavy duty mounting bracket enables a solid bolt-on installation suitable for heavy machinery and trucks alike.

MOSS-D7002Q

• 7″ Waterproof HD Digital Quad LCD Monitor
• Resolution:800(W)*R.G.B*480(H) dots
• RCA 4 ways video input, 1 way audio input with AV-IN input
• PAL/NTSC system auto-switching
• Built-in Speaker
• Reference point & time control for reverse gear settings
• 4pin connector
• DC9~32V wide voltage

The Moss-D7002 Monitor comes with a shroud to block out sun rays in bright situation. In addition to being a great all-around monitor for backup cameras and DVR monitoring, the D7002 can be used in vehicles that have more exposure to sunlight such as cranes and machinery.

MOSS-D7002

• 7″ waterproof HD Digital LCD Monitor
• Resolution:800(W)*R.G.B*480(H) dots
• RCA two ways video input, one way audio input with AV-IN input
• PAL/NTSC system auto-switching
• IP69 waterproof function design
• Built-in Speaker
• Reference point and time control for reverse gear settings
• Four-pin connector
• DC9~32V wide voltage

The Moss-4118B is a fully functional rear view mirror, with a “hidden” 4.3 screen in the right side. When powered up, the video monitor and mirror can be used concurrently. A backup camera wired to the MOSS-4118B would allow the driver to keep his eyes on the rear area of the vehicle, while also viewing the smaller area that the backup camera shows. This is the ultimate in rear visibility.

For a professional installation, our MOSS rear view mirror brackets fit your windshield just like factory, with specific brackets for different model vehicles. Click here to view our brackets.

• Screen: 4.3″ Color TFT LCD
• Resolution: 480*RGB*272
• Super High Brightness: 800 cd/m²
• Contrast: 300:1
• Display format: 16:9 (4:3)
• Same size as original car rear view monitor
• Video input: two (V2 Reserved for Reverse Camera Input)
• OSD menu
• Voltage: 12V
• Consumption: 2W MAX
• Body Weight: 290g
• Mounting: Clip on mounting, easy installation

The Advent NM100 replacement rearview mirror provides a truly cost-effective navigation solution for almost any vehicle! The NM100 comes with built-in iGo Primo Navigation with 3D mapping (the same system that is supplied in their “OE” navigation systems), a built-in handsfree Bluetooth system with phone book accessibility as well as a 4.3-inch LED backlit digital monitor with touch screen. This system includes internal microphone, speaker and GPS antenna as well as universal GM/Ford/Chrysler windshield mounts.

Navigation Safety Mode: This feature shuts off the monitor until your next turn or Navigation instruction needs to be displayed. The next turn will come up and then the screen will shut off unless your next instruction is less than one minute away.

Bluetooth Mode: Bluetooth can connect to one phone at a time, and can dial from the phone, from the mirror’s touchpad, or from the call history list in the mirror.

Rear Camera Mode: Can be paired with any display any standard rear camera, allowing camera operation in reverse, or can display factory rear camera if previously displayed in factory mirror (additional labor may be required). Aftermarket camera can also be wired as a “lane change” camera, allowing camera display to be switched on demand while driving (additional labor may be required).

• Built-in iGo Primo navigation with 19 on-screen display languages
• US and Canada maps with 11 million POIs
• Text-to-Speech recorded voice guidance in English, French and and Spanish
• Built-in Bluetooth with Phone Book
• Internal Microphone, Speakers and GPS Antenna
