Backup Camera Systems

Commercial Grade Rear Avoidance

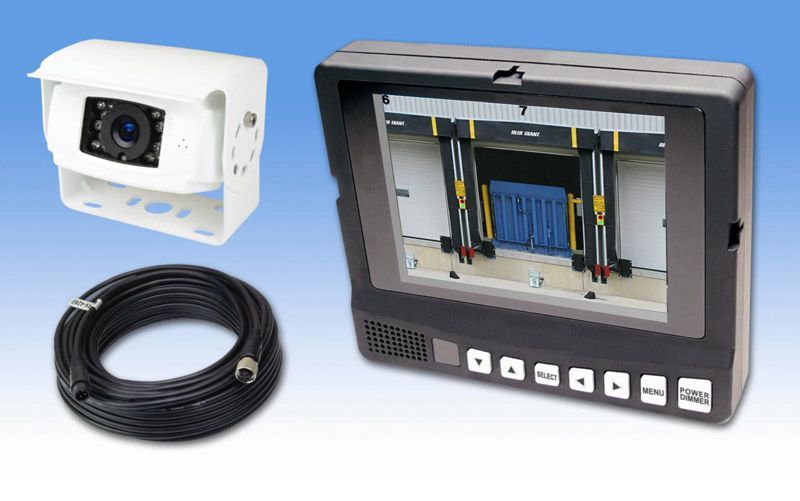

The 5″ screen on this commercial grade backup camera system gives the driver an ample view of obstacles behind the vehicle. The camera is built to withstand adverse driving conditions, and the monitor is mountable to a wide array of surfaces. Rear avoidance systems are a great way to protect your most important assets, and this unit is no exception.

Main Features

• Weatherproof High-resolution 5” TFT LCD monitor
• Distance grid for rear camera automatically displays when vehicle is in Reverse
• Integrated audio speaker
• Sony Super HAD Camera with integrated microphone
• Selectable Mirror/Normal image modes
• Auto-Power On

Commercial Grade Rear Avoidance

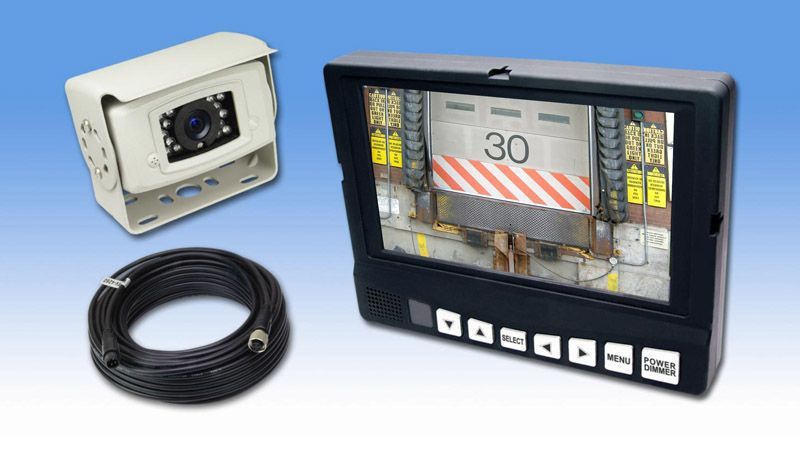

With an easily viewable 7″ screen, this commercial backup camera is a perfect addition to vehicles small and large. The camera is built to withstand adverse driving conditions, and the monitor is mountable to a wide array of surfaces. Rear avoidance systems are a great way to protect your most important assets, and this unit is no exception.

Main Features

• Weatherproof High-resolution 7” TFT LCD monitor
• Distance grid for rear camera automatically displays when vehicle is in Reverse
• Integrated audio speaker
• Sony Super HAD Camera with integrated microphone
• Selectable Mirror/Normal image modes
• Auto-Power On

Commercial Grade Obstacle Avoidance

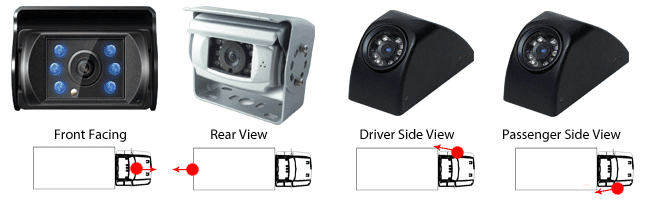

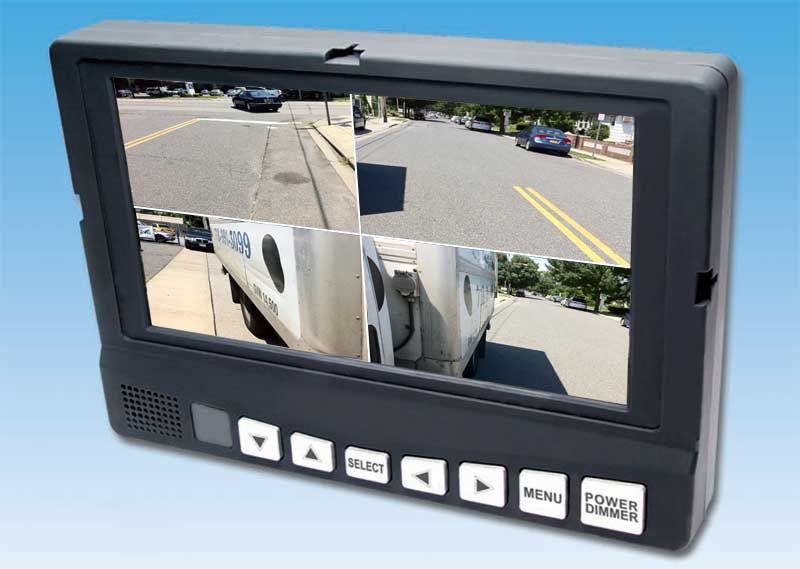

With an easily viewable 10″ screen, this commercial video obstacle avoidance system can display 4 cameras at once on one monitor. The ideal configuration for this unit would include a front facing, rear facing, and driver/passenger side view cameras. This system is also perfect for passenger buses or cargo vehicles in which the driver must monitor multiple locations at once.

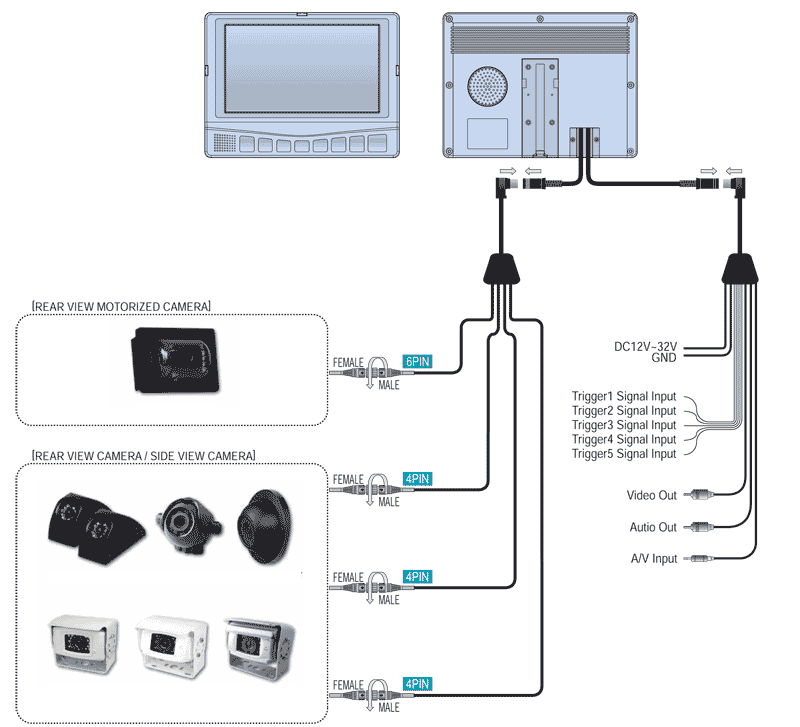

An additional advantage of this system is a set of 12 volt trigger inputs that can activate any camera you choose with a negative electrical pulse. This can be wired to automatically engage a side camera when turning, or a rear camera in reverse.

Main Features

• Weatherproof High-Resolution 10″ TFT LCD monitor
• Multiple Display Mode (Single, Split(Auto), Triple(Auto), Quad)
• 4 Camera inputs, 1 AV input, 1 AV output
• Automatic Picture Display (5 Triggering Functions)
• Side camera image automatically displays when turn signal is on
• Distance grid for rear camera automatically displays when vehicle is set in Reverse
• Wide range input voltage (DC 12V~32V)
• Selectable Mirror/Normal image modes
• Anti-glare / Anti-scratch protective lens (Sunshield Optional)
• OSD for AV source (Color, Brightness, Contrast, Tint & Volume control)
• Dual compatibility for NTSC/PAL video signals
• Integrated audio speaker
• Auto-Power On

Specifications

• Screen Size 10″ Diagonal
• Resolution 1440(w) x 234(h)
• Contrast Ratio 550:1
• Brightness Max 450cd/m2
• Dot Pitch (mm) 0.107(H) x 0.370(v)mm
• Active Area (mm) 154.08.08(h) x 86.58(v)mm
• Viewing Angle Left 75deg / Right 75deg / Up 55deg / Down 60deg
• Dimensions 10.7″(w) x 6.3″(h) x 1.3″(d)
• Color System NTSC / PAL
• Power Consumption DC 12-32 Volt, Max 9.6W
• Operating Temperature -30degC – +80degC (-22degF – 176degF)

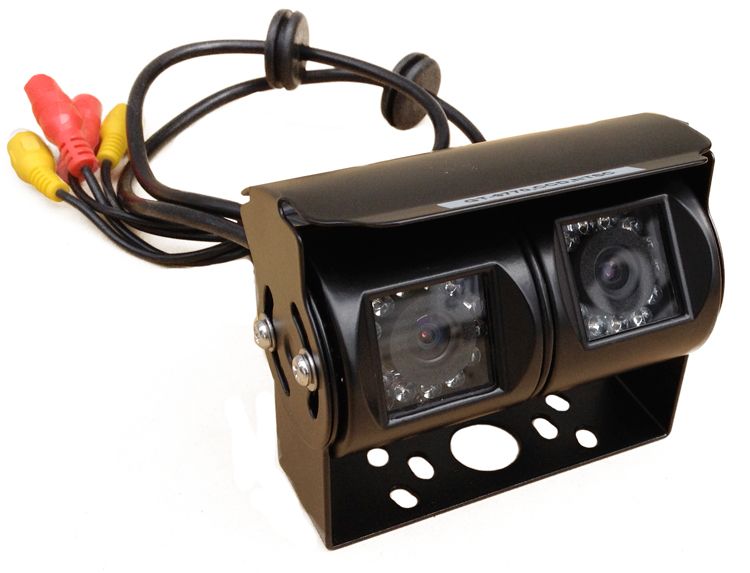

The dual angle camera gives you a view outward and downward for a more complete picture of what is behind you. Cameras are high resolution and low lux, so you can see the image in relatively low light.

Because backup cameras can prevent liabilities, they pay for themselves with the prevention of each accident. In some places, backup cameras are even becoming mandated by law.

See the examples below. I in the first picture there is a view of the curb, but as we look upwards in the second view there is a fire hydrant that could cause significant property and vehicular damage.

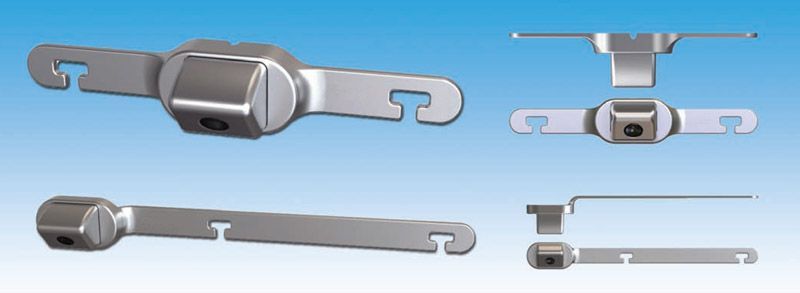

Commercial Grade License Plate Backup Camera

This license plate frame camera is built to last with a durable metal housing. Because the unit uses the existing location of the vehicle license plate, you can rest assured that it is mounted securely and out of the way. The low lux image sensor is angled downwards to capture video close to the vehicle, giving the driver an extra set of eyes for backup up.

Included are extra brackets to obtain an optimal mounting configuration.

Main Features

• 640 x 480 resolution
• License Plate Mounting Bracket
• Rear View Camera
• Sony Super HAD Camera with integrated microphone
• Mirror Image
• 4-pin Lock Connector
• Waterproof

The Cameron Gulbransen Kids Transportation Safety Act was signed into law in 2008. The purpose of this act was to make cars safer for children, who are injured or killed in non-traffic related accidents at a rising rate. The effects of this act are only starting to be enforced now.

Although we believe individuals and businesses should take it upon themselves to make their vehicles safer for everyone including children, many of these measures are now required by law. It is no surprise that action has been taken to increase safety requirements in personal and commercial vehicles; Since 2001 almost 1,200 children have died in accidents that were not even traffic related. These accidents included backups, power windows, and parking. This data was obtained from an independent study, as the government does not even collect data on non-traffic related accidents. Sadly, the real fatality numbers may be much higher. (Data from KidsAndCars.org)

How you and your fleet can be proactive

One of the main concerns that the act has addressed has been rearward visibility. Although many newer cars will be coming equipped with backup cameras as standard features, fleets may be required to outfit their older vehicles with these systems to bring them up to date. Even on Long Island and in New York City, there have been several recent instances when a backup camera would have saved the life of a child or adult. It’s hard to believe that vehicles with limited rearward visibility have not had this requirement sooner, considering how affordable backup camera systems are.

Although some of these requirements may not be enforced for another year, many businesses are proactively complying with these new safety concerns for the benefit of their employees, and the members of their community.

Use these resources to learn more about the Cameron Gulbransen Kids Transportation Safety Act, and what steps you can take to bring your fleet up to date.
