Vehicle Camera Systems

Features

• 1/3″ Sony Super HAD CCD II sensor with amazing low light sensitivity of 0.05 Lux
• 550 TVL of super high resolution
• Day/Night operation
• Permits 3-axis positioning for flexible selection of viewing angle
• Video module can be rotated through 360° for direction, 180° for elevation and 360° on axis
• 3.6mm fixed iris board lens
• Vandal resistant with polycarbonate dome cover to withstand intentional damage
• Pan 360° / Tilt 160°
• Low current consumption of 80mA
• Waterproof IP67 rated

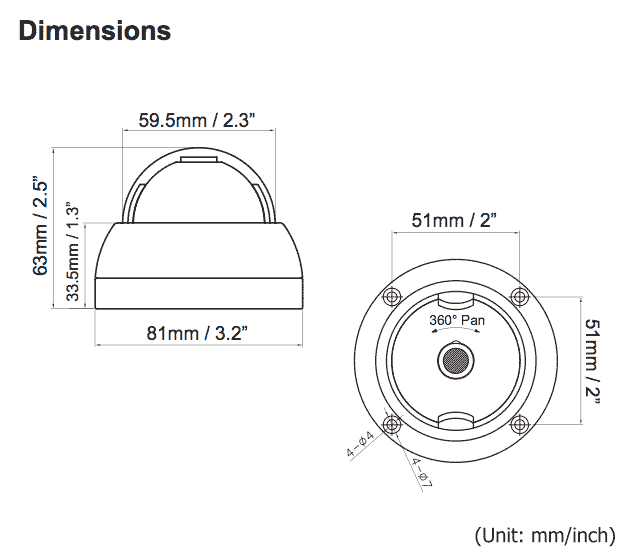

• Compact size with only 81mm / 3.2” in diameter and 63mm / 2.5” high
• Die-cast aluminum black or white color base to choose from

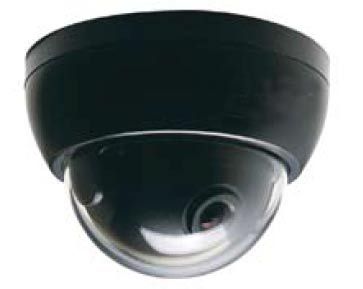

Learn More About Mini Dome Camera

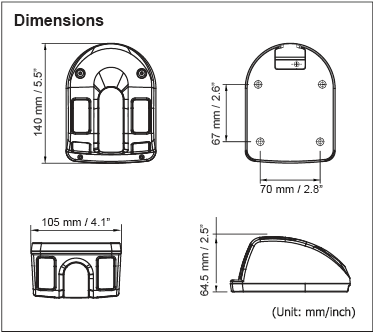

Features

• 520 TVL of excellent high resolution technology
• Streamline & wedge chassis
• Choice of fixed lens (EMW330) or vari-focal 2.9-10mm and 9-22mm lens (EMW330T)
• IR Illuminators to provide clear images at up to 15 meters /50 feet of IR range
• Allows side, rear, wall & ceiling mounting (brackets not required)
• Visible light sensor for day/night brightness detection
• Vandal resistant to withstand intentional destruction
• Waterproof IP67 rated
• Up to 20,000 hours of IR LED lifespan

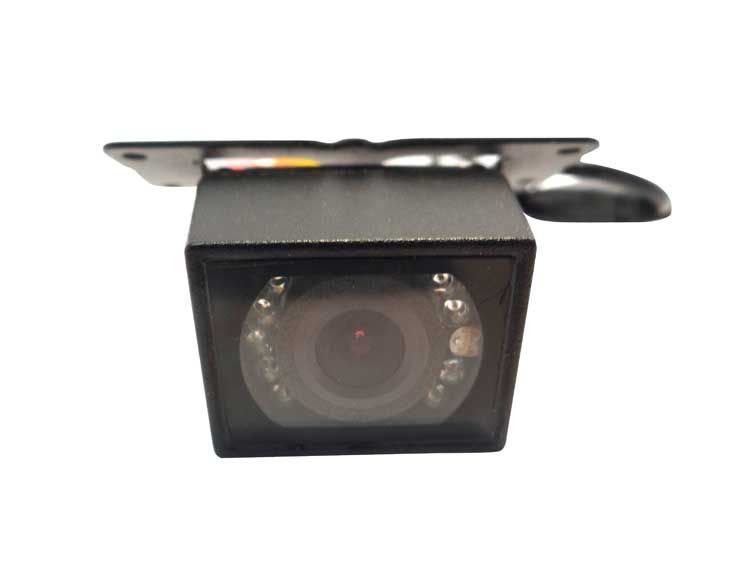

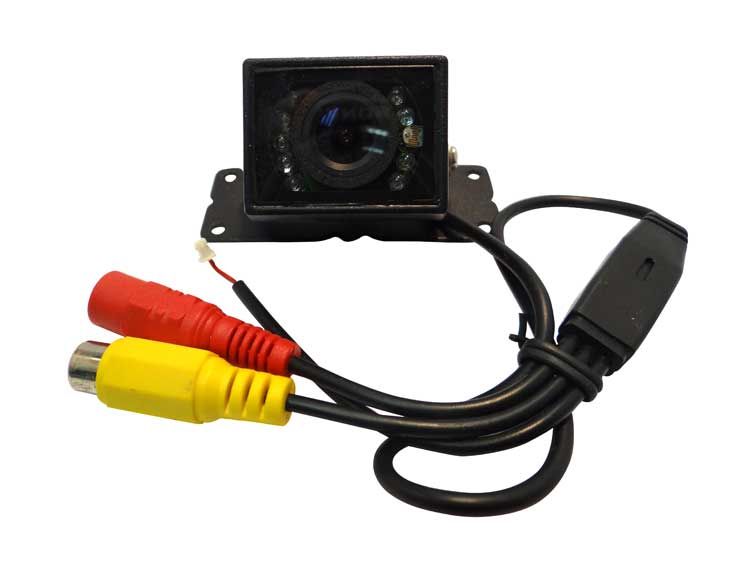

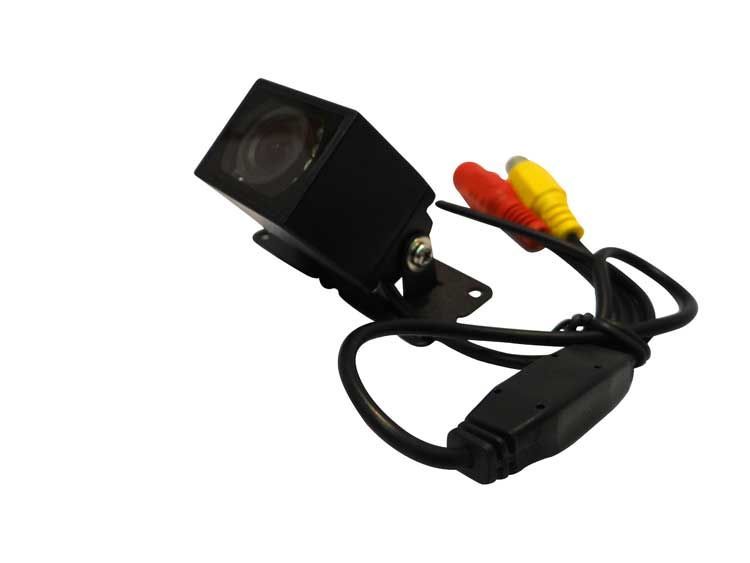

MOSS-331RM Universal Vehicle Camera

For all purpose use, this standard backup camera provides high quality video in most lighting situations. The sturdy housing can hold up to all weather and road conditions. Mounting is accomplished with the versatile bracket, which allows a bolt-on installation either on a bumper, overhead, or virtually any other mounting location.

School buses, trucks, RV’s, and trailers all benefit from this versatile camera. Applications can include mobile DVR systems, backup cameras, and other monitoring systems.

• Car rear view IR camera
• 120° Wide view angle
• IP68 waterproof design
• Casing Material: Aluminum alloy
• Supports Normal/Mirror switching
• RCA Connector
• 9pcs/F5 IR LEDs, 7m IR working distance

The MOSS-701-235-UM Mini Camera is ideal for both video surveillance and accident avoidance applications. With its small form factor, durable housing, and flexible mounting options, this unit can go just about anywhere.

MOSS-701-235-UM Mini Camera

• Metal-cased mini housing with standard fixed lens.
• Available in black finish.
• Low power consumption.
• Easy installation on ceiling or wall, surface or flushmount.
• Audio output.

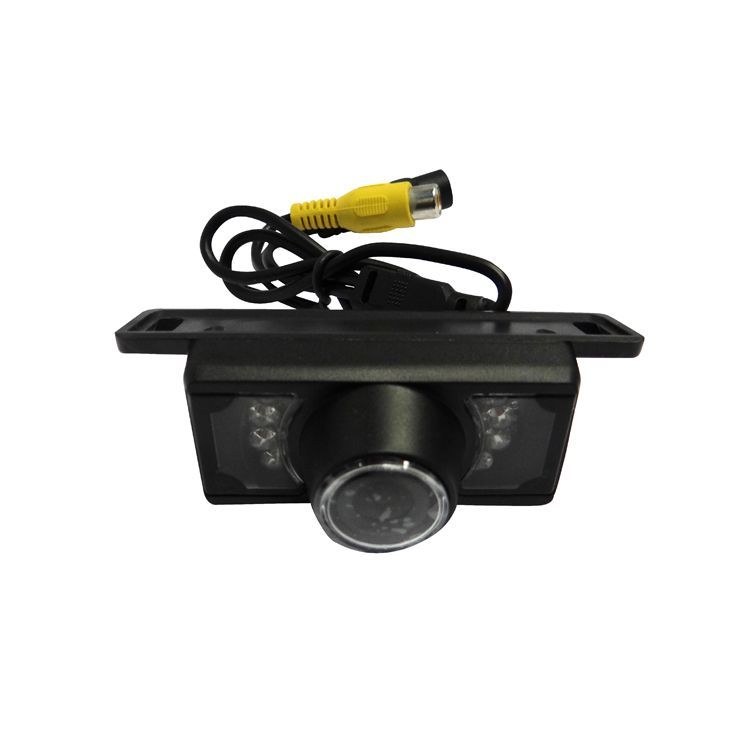

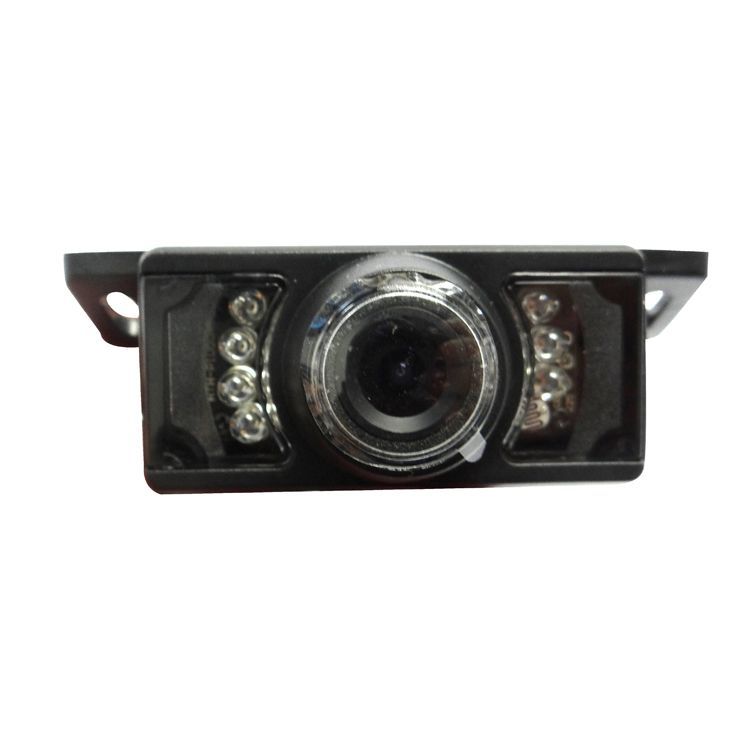

MOSS-321RM Universal Backup Camera

This universal backup camera can mount under an overhang or bumper for a clear view of its surroundings. This is useful for vehicles with limited mounting opportunities or a high rear bumper. The high quality image sensor is assisted by IR LED’s in low light situation.

• CMOS camera
• 120° Wide view angle
• IP68 waterproof design
• Casing Material: Plastic
• 9pcs/F5 IR LEDs, 7m IR Working distance

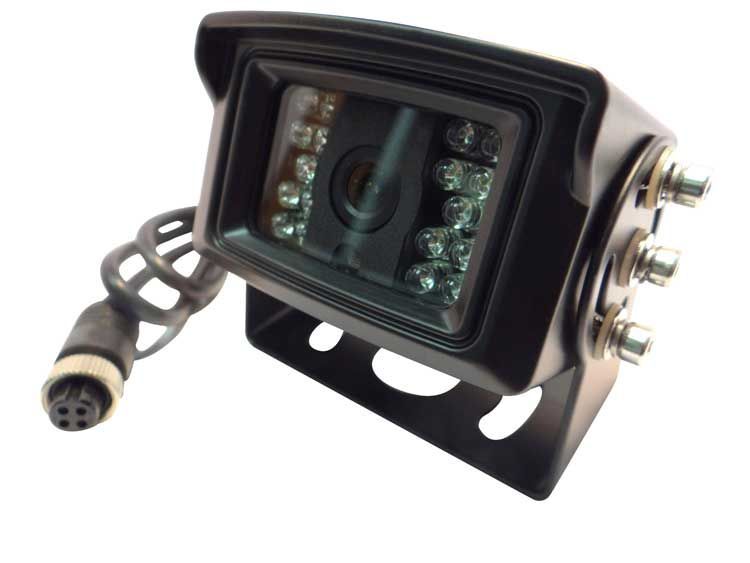

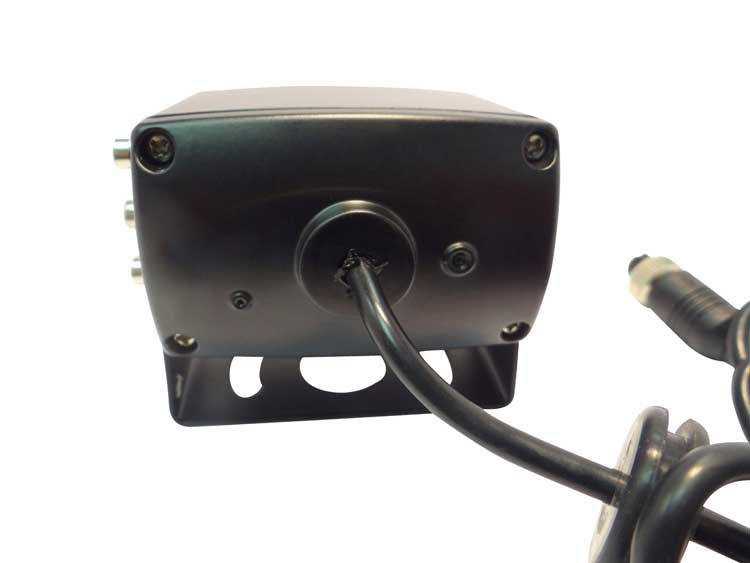

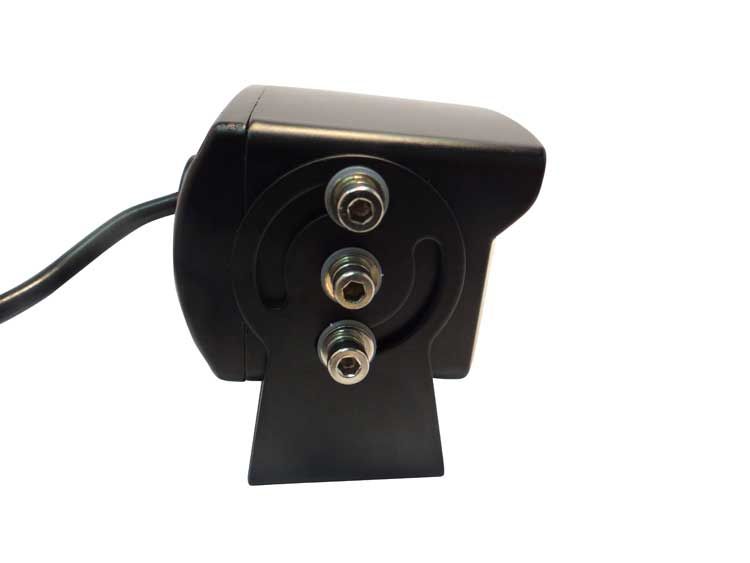

MOSS-04R Universal Heavy Duty Commercial Vehicle Backup Camera

This MOSS-04R universal backup camera is applicable to school buses, tour buses, buses, truck and trailers and provides high quality video in most lighting situations. The housing is virtually weather-proof providing reliable operation. The versatile bracket makes bolt-on mounting applicable on most areas of the vehicle.

Useful for backup monitoring and security applications.

MOSS-04-R

• Heavy duty vehicle CCTV camera
• Bus reversing backup cameras
• 120° Wide view angle
• IP67 waterproof design
• Material: Aluminum
• 18pcs/F5 IR LEDs, 15m IR working distance
• Support Mirror / Normal image switch
• 4pin connector
• Built-in audio
• Casing color: black (standard), white

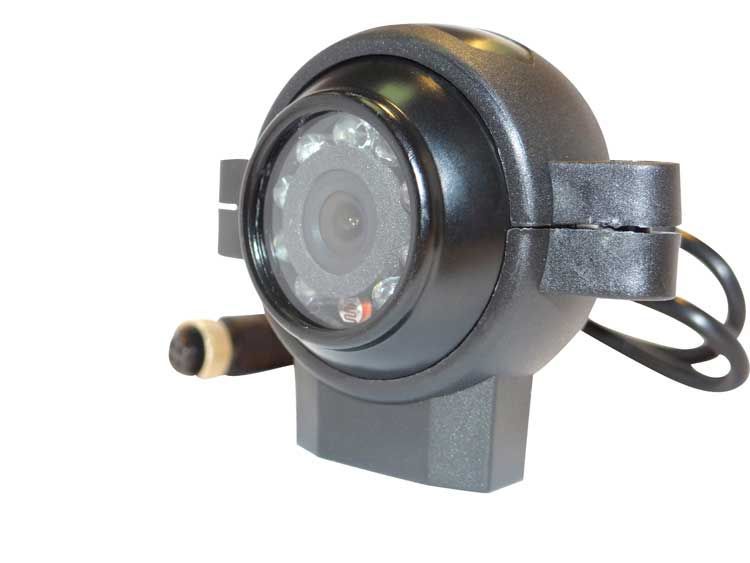

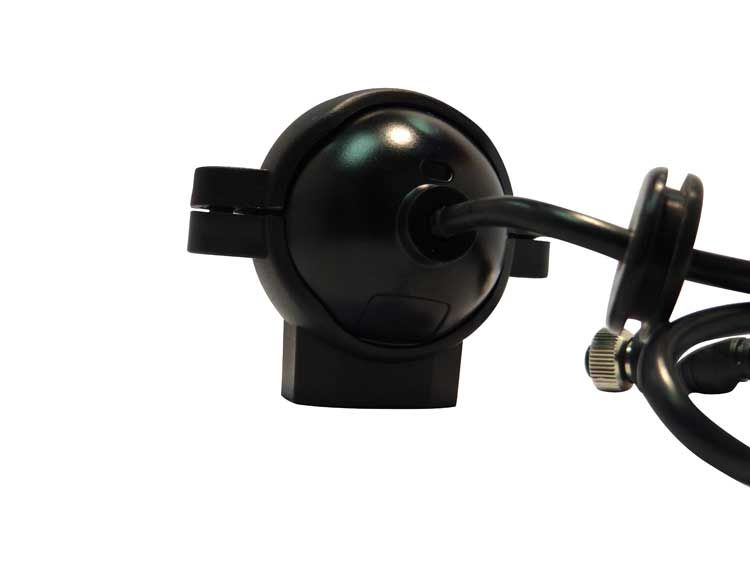

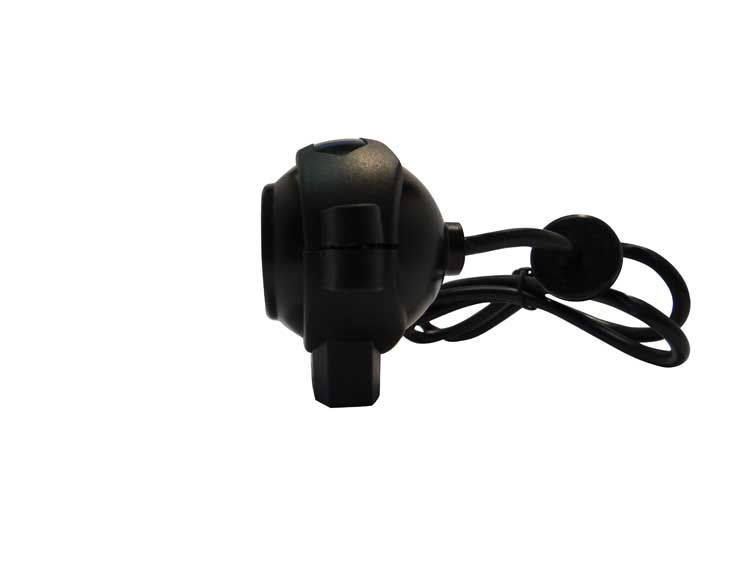

MOSS-07DR Commercial Vehicle Camera

MOSS-07DR with its unique shape and size is able to go in locations that normal configuration camera’s can’t. The “eye ball” socket design allows for additional viewing angles. Great for heavy equipment camera surveillance systems. Mounting it done through two threaded bolts at base of camera.

MOSS-07UR

MOSS-07UR is a great choice for bus video surveillance as it can be mounted overhead for optimal placement. The 07UR is at home in both tour buses and school buses, and can be placed in a variety of overhead locations.

• MOSS-07UR
• 1/3″ Color Sony SuperHAD II low Lux CCD
• Resolution: 540TVL,600TVL
• 95° wide view angle/3.6mm fixed lens (120° /2.8mm fixed lens wide view angle optional)
• IP67 waterproof function design
• 12pcs/F3 IR LEDs, 5m IR working distance
• 4 Pin Connector
• DC12V

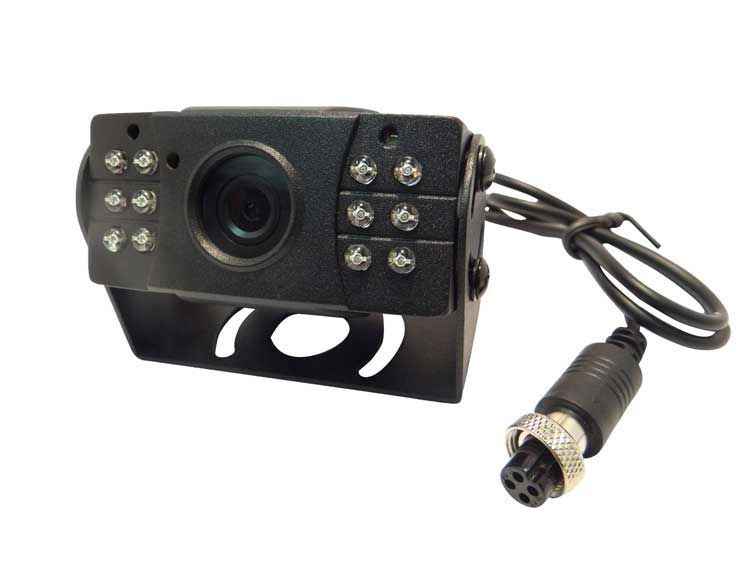

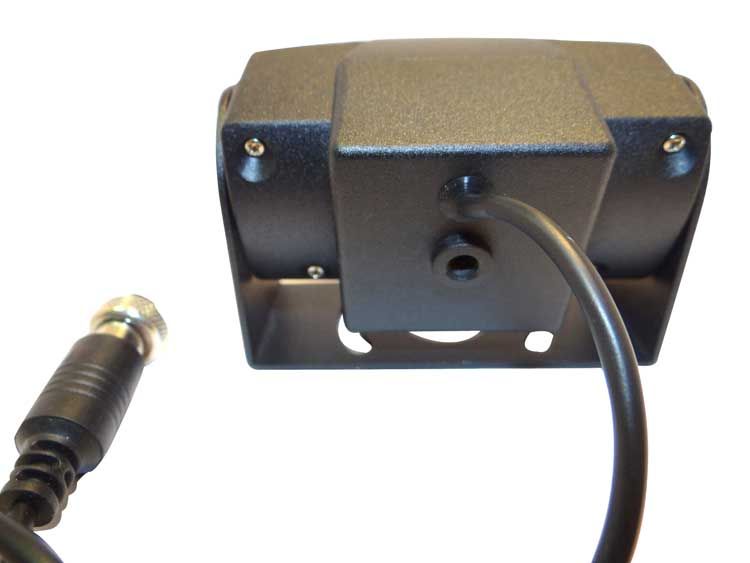

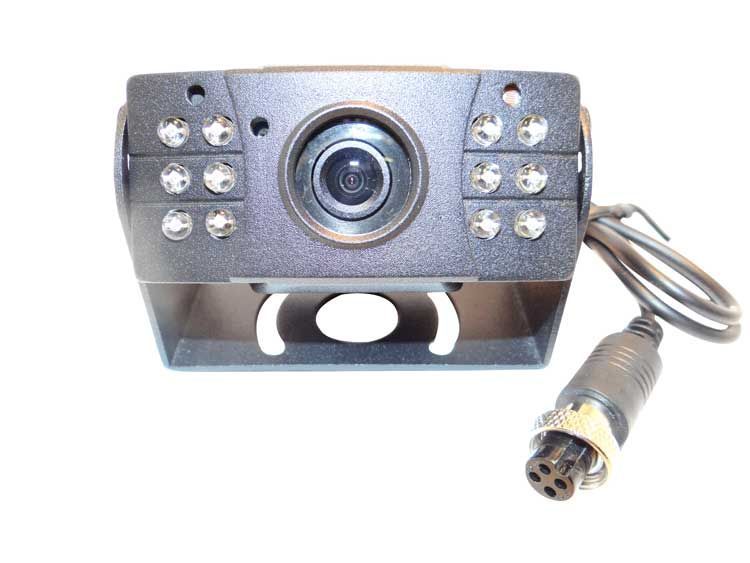

MOSS-04UR Dash/Windshield Mount Camera

MOSS-04UR This Dash/Windshield mount camera provides high quality video in most lighting situations. Installation either on a dash or windshield. IR LED’s assist this camera in low lighting situations.

School buses, trucks, RV’s, and trailers all benefit from this versatile camera.

MOSS-04UR

• 1/3″ Color Sony SuperHAD II low Lux CCD
• Resolution: 420TVL,540TVL,600TVL
• 95° wide view angle/3.6mm fixed lens (120° /2.8mm fixed lens
• wide view angle optional)
• IP67 waterproof function design
• Material: Metal
• Built-­in audio
• 12pcs/F5 IR LEDs,8~10m IR working distance
• 4 Pin Connector
• DC12V'

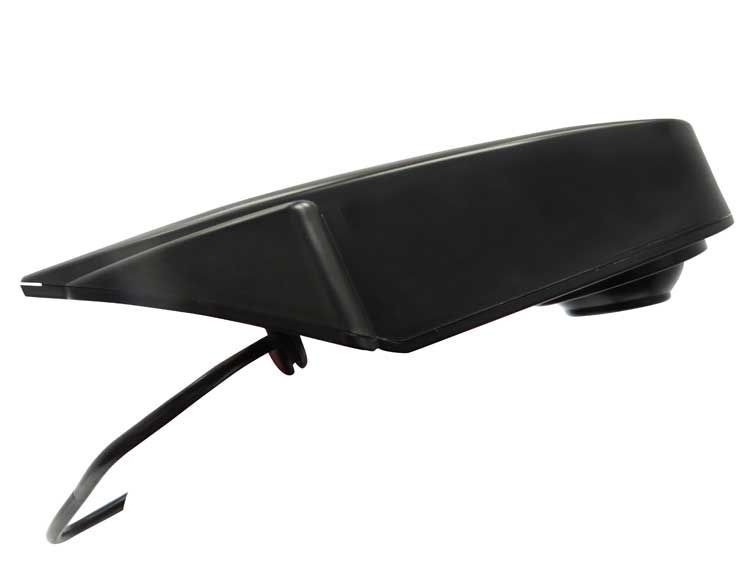

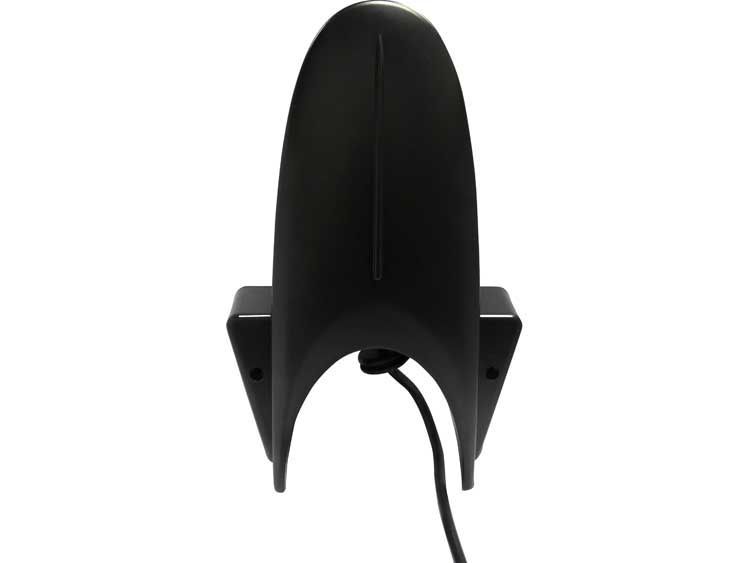

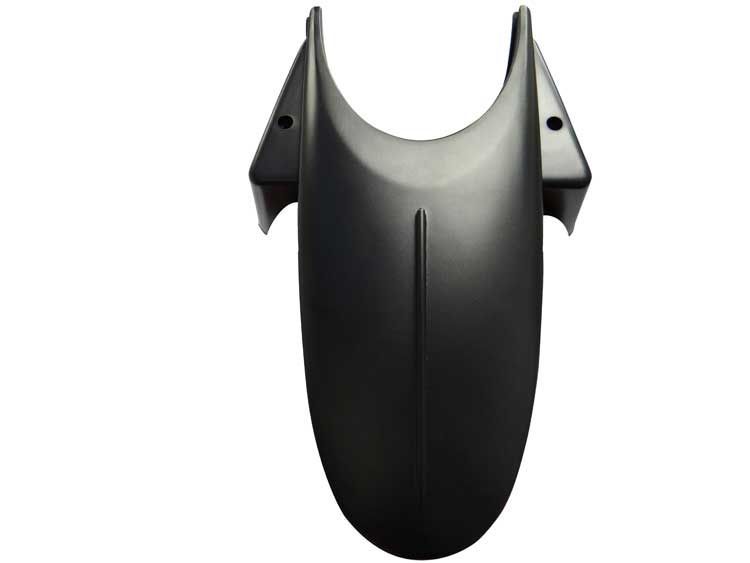

MOSS-09R Van and Sprinter Commercial Backup Camera

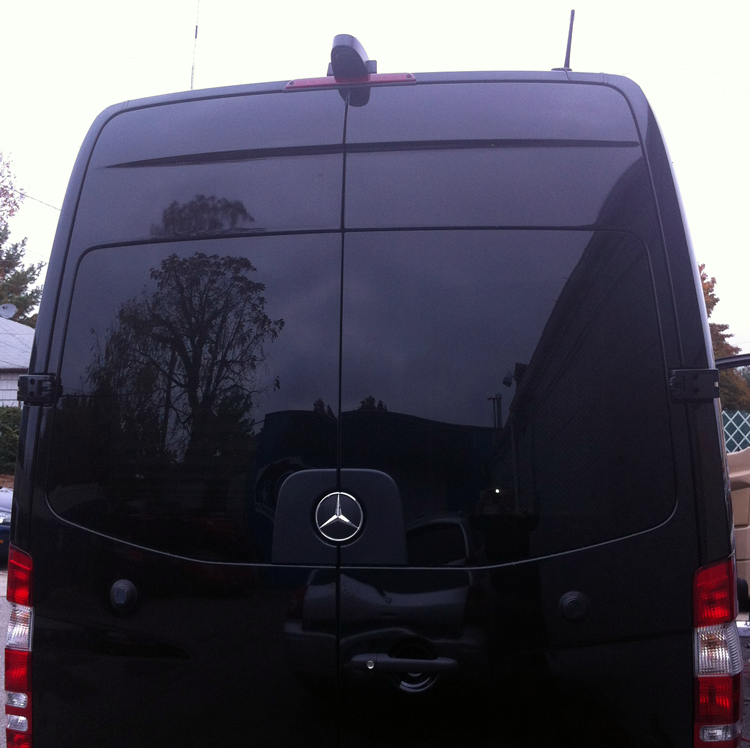

MOSS-09R is specifically designed for newer vans and sprinters where there is no place to mount a camera. The unique design allows the camera to mount on the roof looking down the rear doors. As the images show, this camera is designed for today’s vans.

School buses, trucks, RV’s, and vans all benefit from this versatile camera. Applications can include mobile DVR systems, backup cameras, and other monitoring systems.

MOSS-09R

• 1/4″ sharp or 1/3″ Sony CCD 420TVL/520TVL
• 120° Wide view angle
• IP67 waterproof function design
• Material: Plastic
• 9pcs/F5 IR LEDs, 7m IR working distance
• 4pin connector
• Casing color: black
• DC12V

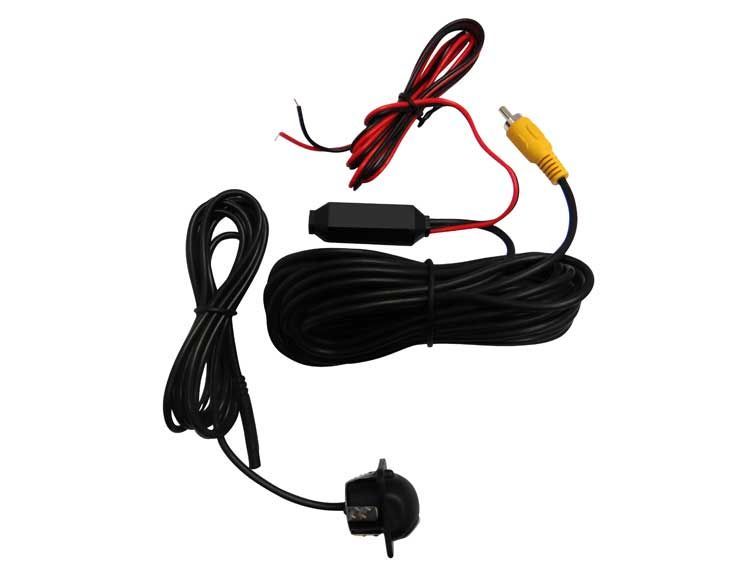

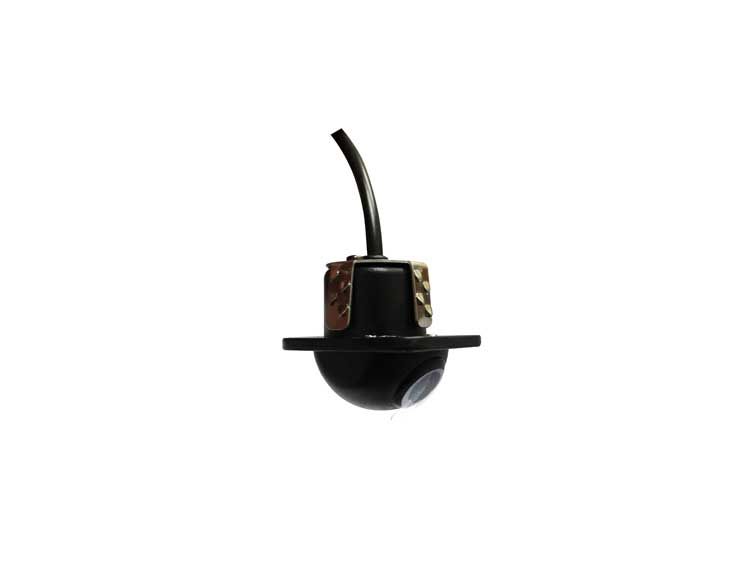

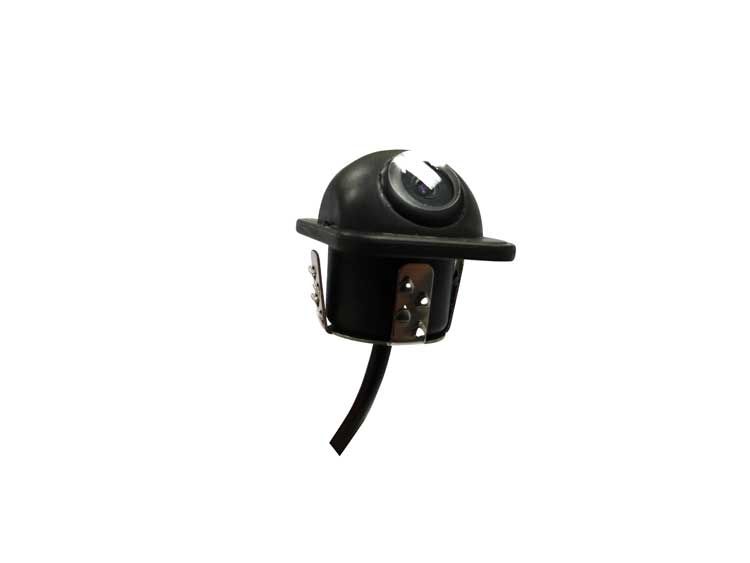

MOSS-441M Flush-Mount Backup Camera

MOSS-441M for vehicles in need of a super compact and attractive camera mounting solution, the flush mount camera allows for just that. Safely and covertly tuck this unit next to a license plate or overhang for optimal placement. The image sensor performs well in all lighting situations, and is perfect for backup cameras or DVR systems alike, outside and inside of vehicles of all kinds. Ideally, the MOSS-441M is perfect for work vans, SUV’s, and small box trucks.

MOSS-441M

• Car rear view camera
• CMOS MT9V136
• 170° Wide view angle
• IP68 waterproof function design
• Casing material: Plastic
• Casing color: black
• Support normal /Mirror image switching
• Support reversing reference line switching
• RCA connector
• DC12V

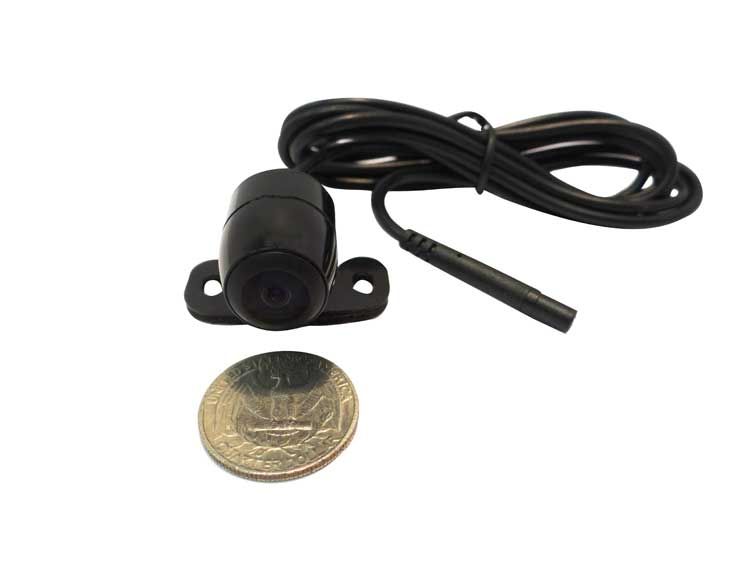

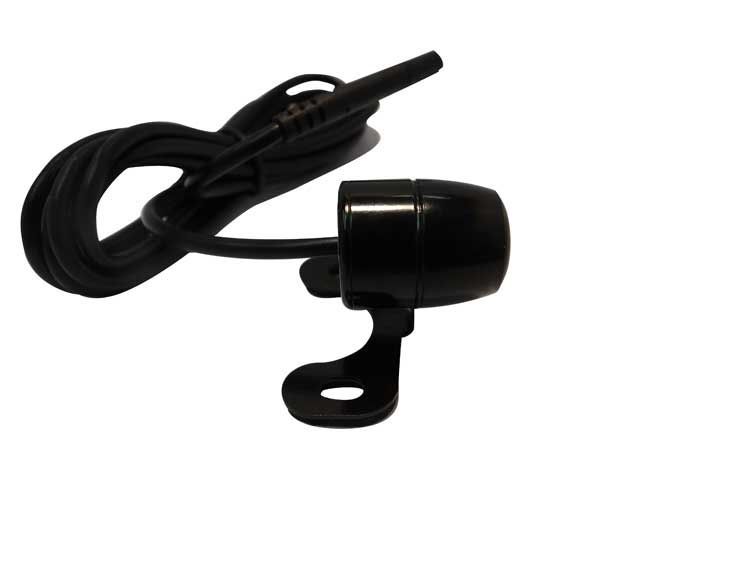

MOSS-211M-M Universal Backup Camera or Interior Camera

MOSS-211M-M for all purpose use, this standard backup camera provides high quality video in most lighting situations. Mounting is accomplished with the versatile bracket, which allows a bolt-on installation either on a bumper, overhead, or virtually any other mounting location. It’s small size makes it ideal for tight spots that other cameras cannot fit in.

School buses, trucks, RV’s, and trailers all benefit from this versatile camera. Applications can include mobile DVR systems, backup cameras, and other monitoring systems.

MOSS-211M-M

• Car rear view camera
• CMOS MT9V136
• Signal system: PAL/NTSC
• 170° Wide view angle
• IP68 waterproof function design
• Material: zinc alloy
• Support normal /Mirror switching
• Support reversing reference line switching
• RCA connector
• DC12V

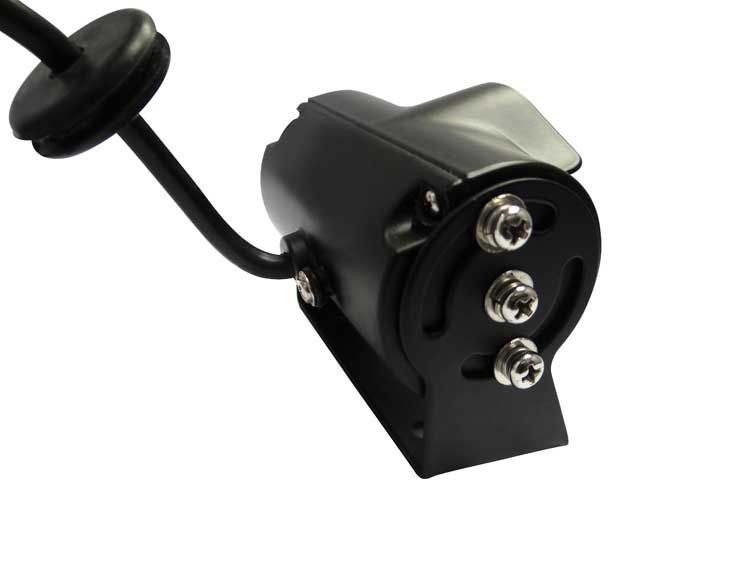

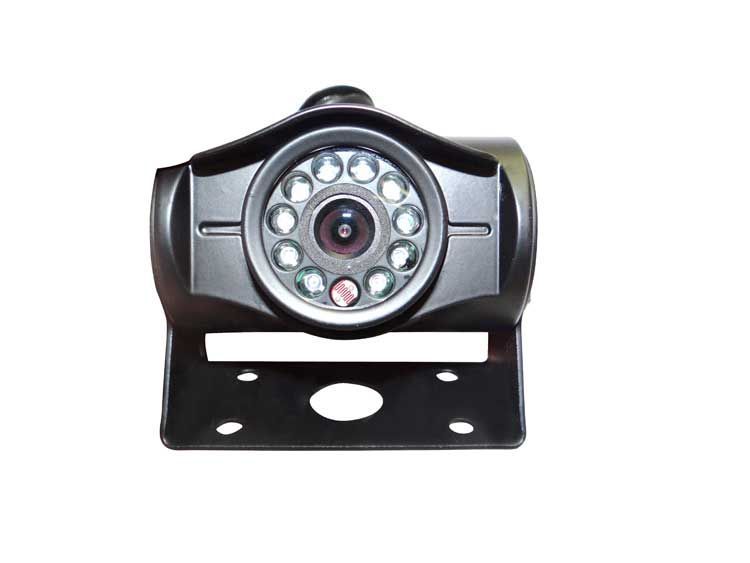

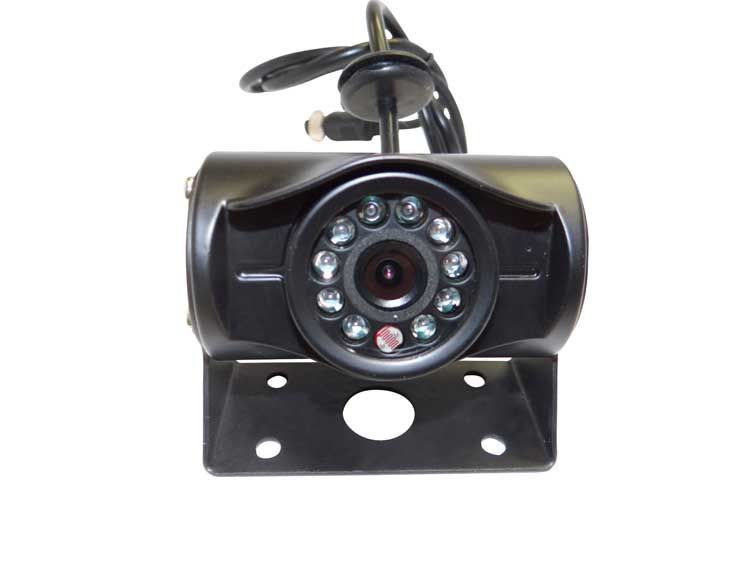

MOSS-05R Heavy Duty Commercial Vehicle Backup Camera

MOSS-05R this heavy duty camera features a rock solid housing, sturdy wiring with grommet, and IR LED’s for optimal visibility in low light situations. While this camera can be used for rear view applications, it’s also well suited for front view, overhead, and interior applications involving mobile DVR systems.

MOSS-05R

• Heavy-duty vehicle CCTV camera
• CCD 420TVL/520TVL
• 120° Wide view angle
• IP67 waterproof function design
• Casing material: Aluminum alloy
• 8pcs/F5 IR LEDs, 6m IR working distance
• Support normal / Mirror switching
• 4pin connector
• Built-in audio
• Casing color: black
• DC12V

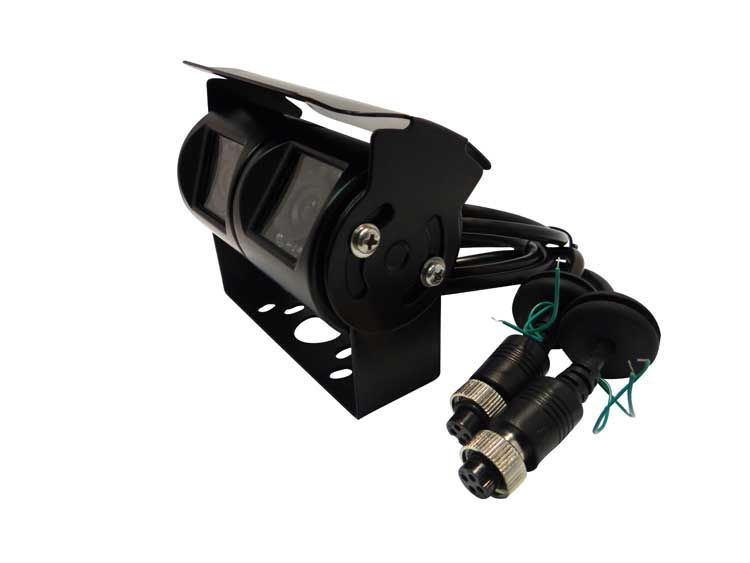

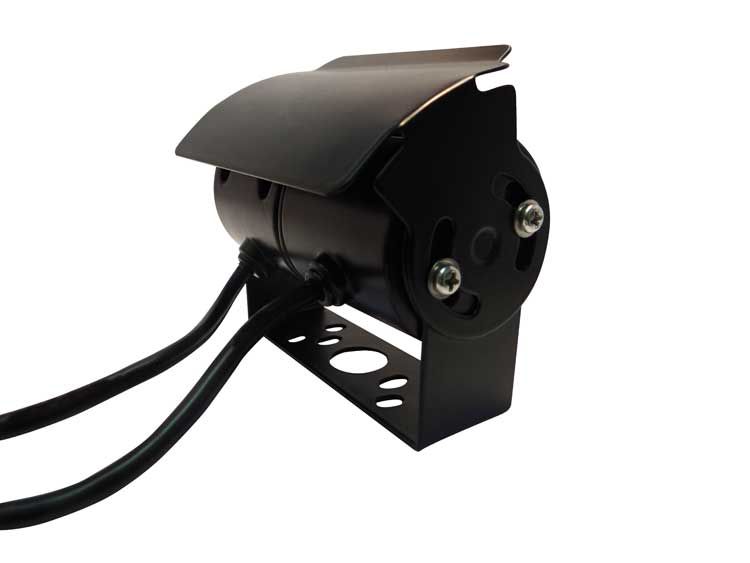

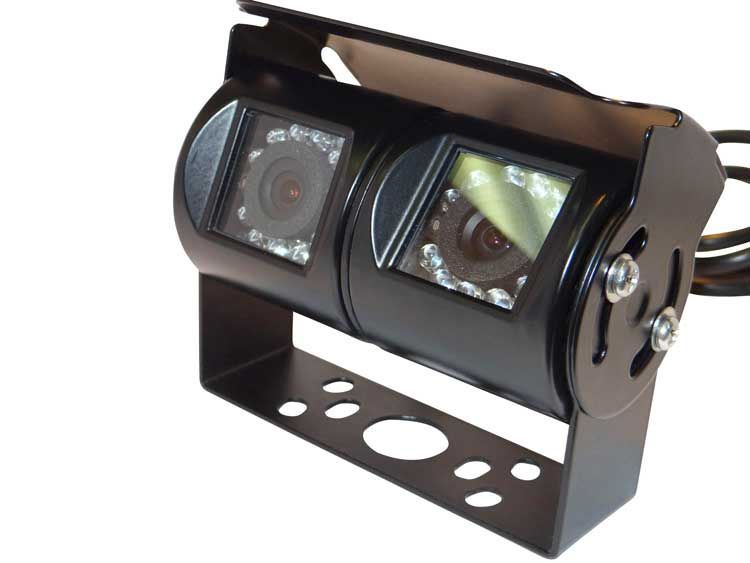

MOSS-01S2R Dual View Vehicle Camera

The dual view camera is perfect for situations in which the driver would benefit from two angles. When backing up to a loading dock, it’s helpful to see the dock as well as its surroundings. The dual view camera features two high quality views that help the driver of a tractor trailer, bus, box truck, school bus, tour bus or RV of any size.

M0SS-01S2R Heavy Duty Vehicle CCTV Camera

• 90°/120° Wide view angle
• IP67 waterproof design
• Material: Zinc Alloy
• 11pcs/F5 IR LEDs for each, 8m IR
• working distance
• DC12V wide voltage
• 4pin connector
• Audio not avaiable
• Support Mirror / Normal image switch
• Casing colors: black/white

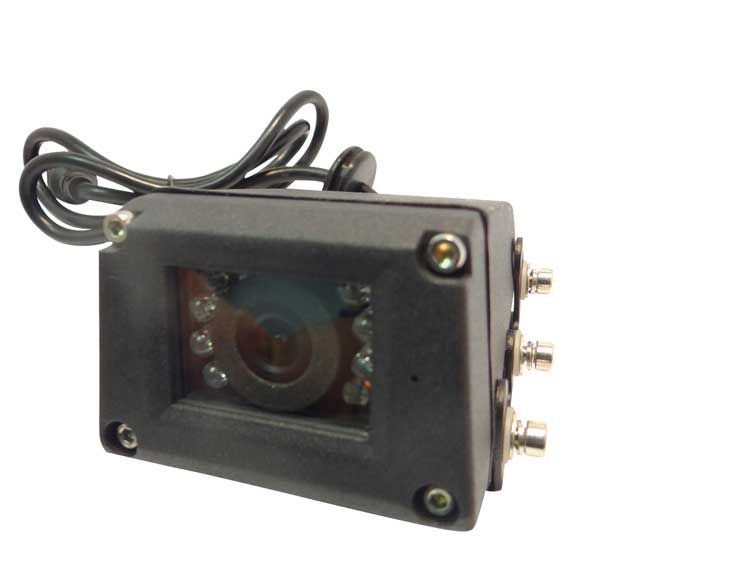

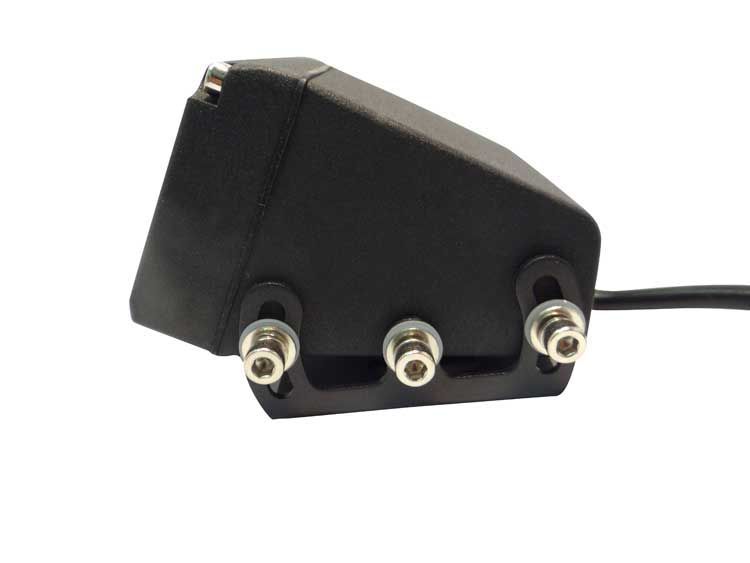

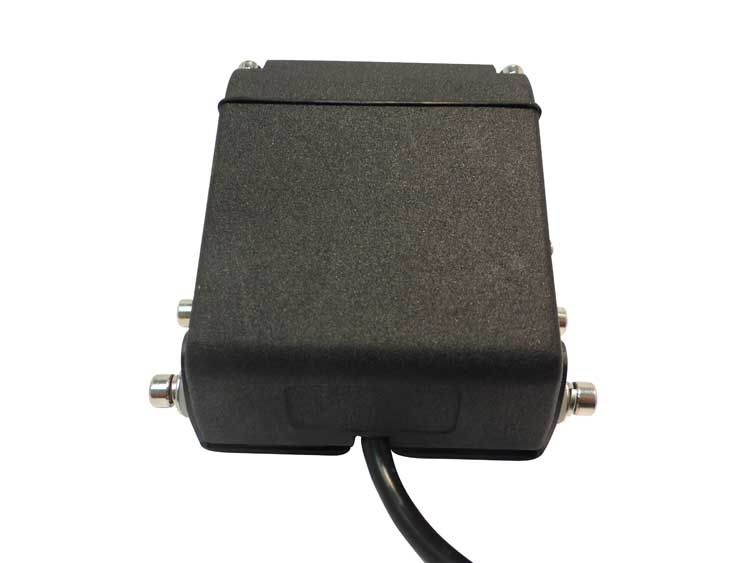

MOSS-10R Heavy Duty Backup/Side Mount Camera

MOSS-10R for all purpose use, this heavy duty backup camera provides high quality video in most lighting situations. The sturdy housing can hold up to all weather and road conditions. Mounting is accomplished with the versatile bracket, which allows a bolt-on installation either on a bumper, overhead, or virtually any other mounting location.

School buses, trucks, RV’s, and trailers all benefit from this versatile camera. Applications can include mobile DVR systems, backup cameras, and other monitoring systems.

MOSS-10R

• Heavy duty vehicle CCTV camera
• Vehicle side Mountable
• 120° Wide view angle
• IP67 waterproof design
• Casing material: iron
• 7pcs/F5 IR LEDs, 5m IR working distance
• 4 Pin Connector
• Built-in audio
• Casing color: black
• DC12V

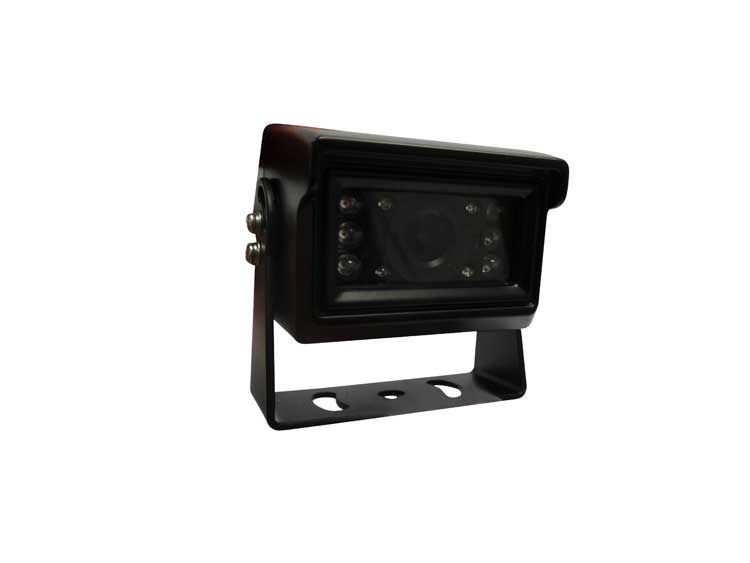

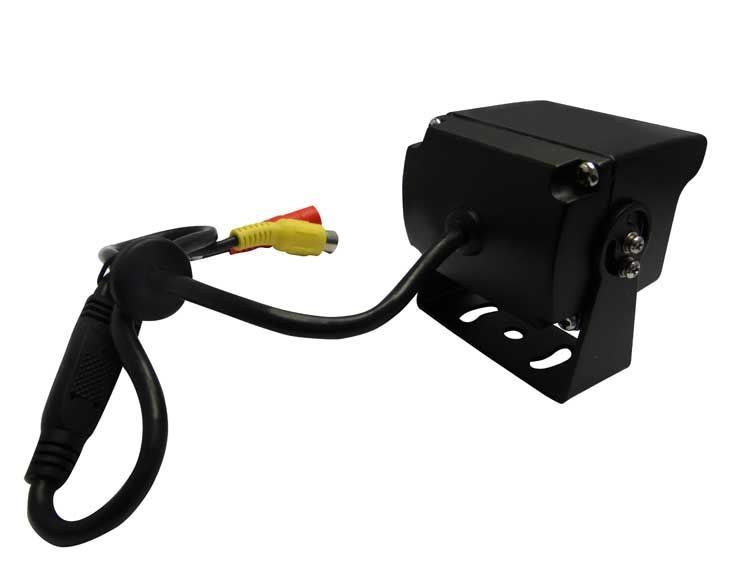

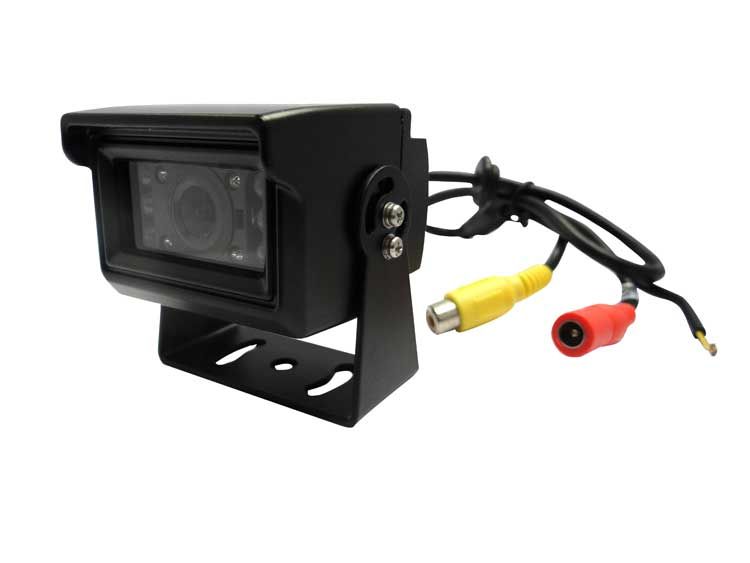

MOSS-04R-M Vehicle Backup Camera

The MOSS-04R-m is the mini brother to the MOSS-04, useful where a smaller sized camera is needed without compromising the durability of a larger one. Good for installations on heavy equipment inside as well as out. Works well as a front view camera from the windshield. IR LEDs allow for a clear view in little to no-light situations.

MOSS-04R-M

• Heavy duty vehicle CCTV camera
• CCD 420TVL
• 90°/120° Wide view angle
• IP67 waterproof function design
• Casing material: zinc alloy
• Casing color: black
• 6pcs/F5 IR LEDs, 4m IR working distance
• Support normal / Mirror switching
• 4pin connector
• Audio NOT available
• DC12V

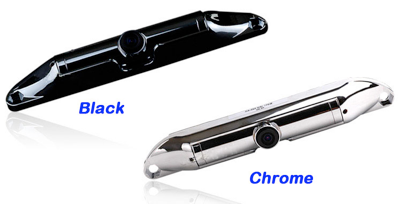

MOSS-ML05 License Plate Frame Camera

The MOSS-ML05 license plate mounted backup camera is perfect for smaller commercial vehicles with limited mounting locations. Just use the existing bolts that fasten the license plate for camera placement. The majority of vehicles will have a license plate at or near the rear center of the vehicle, making it naturally a great location for a camera.

• License plate reversing camera • CMOS OV7950
• Resolution: 420TVL
• Signal system: PAL / NTSC
• Usable illumination: 0.5 Lux (at F1.2)
• Outstanding signal to noise ratio better than 48dB
• Support Normal /mirror image switching
• Support reversing reference line switching
• IP67 Waterproof design
• 170° wide View angle
• Casing colors optional: black, chrome
• Casing material: Plastic
• RCA connector
• DC12V

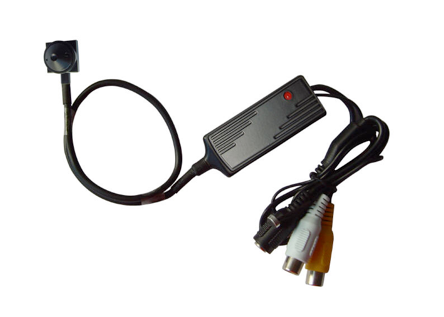

MOSS-MP01-A Compact Covert Vehicle Camera

The MOSS-MP01-A compact covert vehicle camera is perfect for covert video surveillance as well as video monitoring applications limited by confined spaces. The camera’s power supply is further down the wire harness to save precious space in the small camera housing. Included also is a microphone for covert audio surveillance.

MINI Spy CCD Camera

• 1/3” Sony Color CCD 420TVL / 520TVL
• Signal system: PAL / NTSC
• Usable illumination: 0.5 Lux / 0.1 Lux, at 2.0
• Outstanding signal to noise ratio better than 48dB or 54dB • Fixed lens: 3.7mm taper pinhole lens
• Casing material: metal
• RCA connector
• Built-in audio
• Dimension: 15(L)*15(W) mm
• DC12V, 100mA

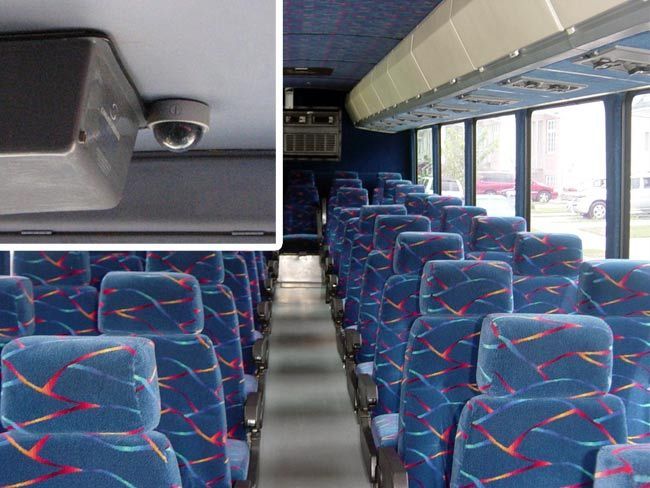

There’s a good reason why dome cameras are found in tour buses, school buses, and other passenger vehicles with DVR surveillance: They’re perfect for it. Dome cameras are not only durable, but they provide a perfect overhead view of a large seating area. These cameras are also perfect for the cargo bays in box trucks, where a large storage area needs to be viewed.

MOSS-08DVF Mini Dome Camera

• Vehicle Metal Vandal proof & waterproof dome CCD Camera
• 1/3″ Sony Color SuperHAD II Low Lux CCD
• Sony DSP & Next Chip DSP
• Resolution: 500TVL, 600TVL, 700TVL (Sony Effio-E)
• Usable Sensitivity: 0.05 Lux (at F1.2)
• Outstanding signal to noise ratio better than 54dB or 65dB
• Compact function for Shutter/Auto, BLC/Auto, AGC/Auto
• Easy Installation Mechanical Design
• IP67 waterproof & Vandal proof function design
• Fixed lens: 3.6mm (6mm, 2.8mm, 2.3mm optional)
• Dimension: 94(D)*67.2(H) mm
• DC12V

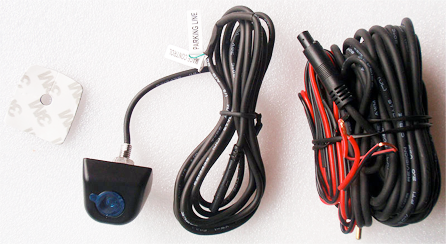

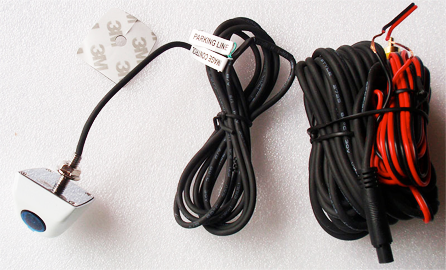

MOSS-421M Flush Mount Backup Camera

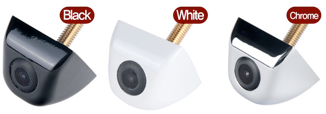

With three distinct colors to choose from, the MOSS-421M will blend with the outside of any fleet vehicle. Not only does the 421M leave your fleet with a polished, factory appearance, but the CMOS camera displays vehicle obstacles with supreme clarity. Perfect for connection to a backup camera or mobile DVR system.

• Car rear view camera
• CMOS MT9V136
• Signal system: PAL / NTSC
• Usable illumination: 0.5 Lux.at F1.2
• Outstanding signal to noise ratio better than 48dB
• Support normal / Mirror image switching
• Support guideline switching
• IP68 Waterproof function design
• 170° wide view angle
• Casing colors optional: black, white, chrome
• Casing material: aluminum alloy
• RCA connector
• DC12V

MOSS-01R

MOSS-01UR camera is built with durability and security in mind. Available in black or white, this sturdy unit can be mounted to the rear of box trucks and machinery for use as a backup camera or as a monitor for crucial parts of the vehicle. IR LED’s improve visibility in low lighting, while the adjustable sun visor deflects excessive sunlight from the lens.

Heavy duty vehicle CCTV camera

• Signal system: PAL / NTSC
• Usable illumination:S 0 Lux (Infrared LEDs on, at F1.2)
• Outstanding signal to noise ratio better than 48dB or 54dB
• Support normal / Mirror switching
• IP67 Waterproof function design
• 90° /120° wide view angle
• 18pcs/F5 IR LEDs, 15m IR working distance
• Casing colors: black, white
• Casing material: Aluminum alloy
• 4pin connector
• Built-in audio
