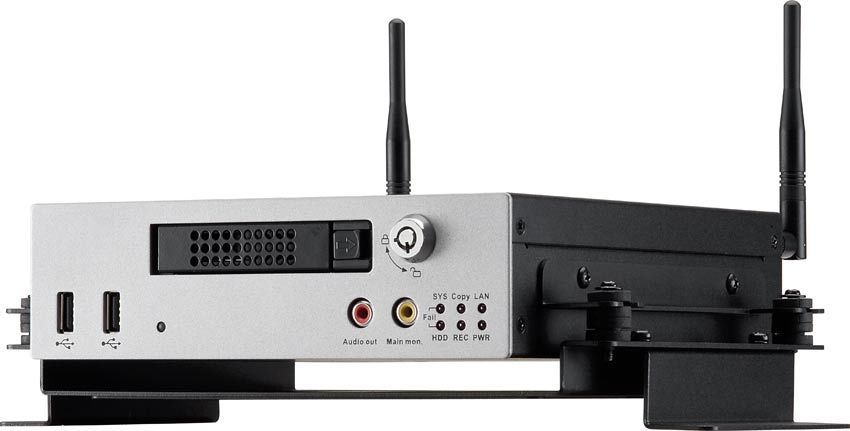

Mobile DVR Video Surveillance

Unit Features:

• 12 channels of video and audio recording
• Recording Rate : 120 FPS @ D1 resolution / 240FPS @ 2CIF /480 FPS @ CIF resolution (with global settings – record rate, resolution and quality can be set independently per-camera up to the maximum of 480 CIF-equivalent FPS)
• H.264 compression format for efficient disk and network utilization

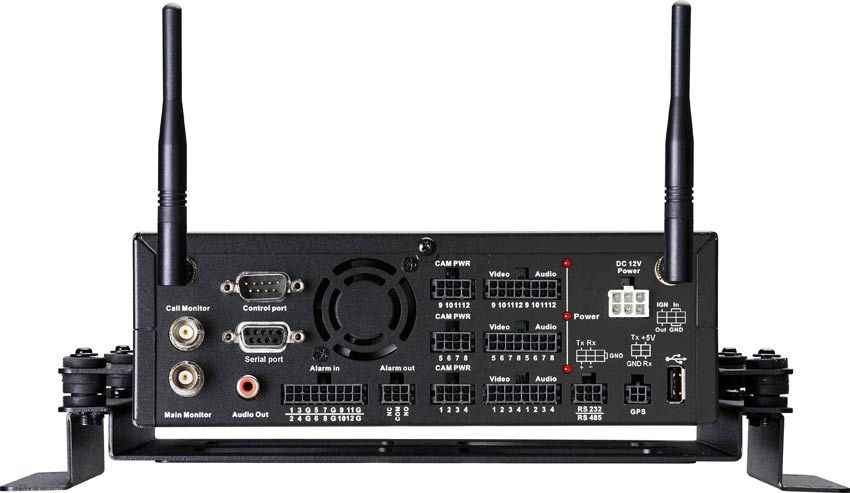

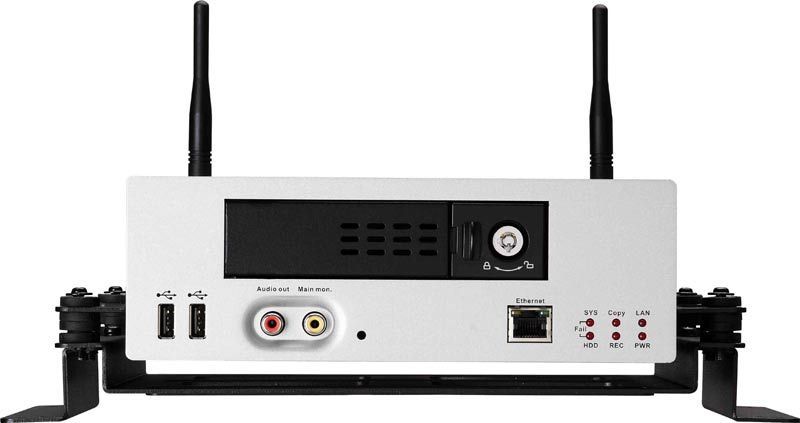

• Front and rear panel video/audio outputs for easy connection and configuration
• Special Graphical User Interface design for use with mobile small-sized monitors
• Molex connectors for shock & vibration resistance; interface cables to BNC, RCA and power jacks supplied
• Alarm Inputs & Outputs : 12 & 2 (alarm outputs are form “C”)
• Embedded 3-axis g-sensor function with separate programmable alarm levels for X/Y and Z axis
• Removable video storage hard disk; easy playback on PC (using EPR110C, sold separately)
• Supports single 2.5” SATA hard disk standard (up to 2TB)
• Supports multiple interfaces: 3xUSB , RS-485, RS-232, GPS port, wired Ethernet & IR Remote Control
• Optional wireless 802.11 a/b/g with diversity antennas1
• Provides regulated 12VDC camera power for 12 cameras; interface cables to power jacks supplied
• Optional External EDGE/GPRS/CDMA/WI-FI Modules for cellular/specialized wireless transmission
• GPS function tracks speed and geographic limits (optional external GPS receiver) Power Supply : 10V~36VDC with Surge Protection, Voltage Regulation, programmable Delay on/off Delay on protects equipment from starter motor power surges; delay off allows recording even after ignition has been turned off
• Temperature: -40°F~131°F (Operating), -40°F~185°F (Non-Operating)
• System warnings: System fail LED : HDD full, HDD/Sys Temp, Fan fail, HDD fail LED : HDD power off, HDD failure
• Email Alert: Multiple email notifications in response to alarms and events. (Requires real time network connectivity though cellular or WiFi service)
• Event Alarm: Fan failure, hard disk temperature, hard disk failure, hard disk full, hard disk removed, power loss (after power is restored), network loss, GPS loss, GPS speed, GPS fencing,G sensor limits
• Watchdog Function: Reboots DVR automatically if required

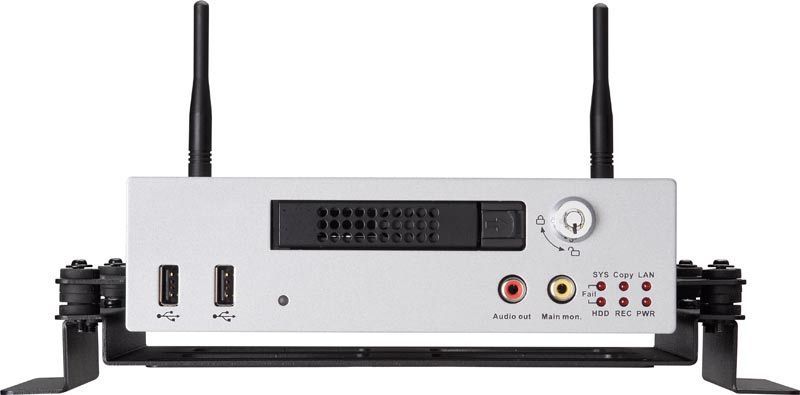

UNIT FEATURES

• Four channels of video and audio recording
• 1-DIN car audio size
• Recording Rate: 60 FPS @ D1 resolution / 120 FPS @ 2CIF /
• 120 FPS @ CIF resolution (with global settings; record rate, resolution and quality can be set independently per camera up to the maximum of 240 CIF-equivalent FPS)
• H.264 compression format for efficient disk and network utilization
• Front and rear panel video outputs for easy connection and configuration
• Special Graphical User Interface design for use with mobile small-sized monitors
• Molex connectors for shock & vibration resistance; interface cables to BNC, RCA and power jacks supplied
• Alarm Inputs & Outputs: 6 & 2 (alarm outputs are form “C”)
• Embedded 3-axis G-Sensor function with separate programmable alarm levels for X/Y and Z axis
• Supports single 2.5” SATA hard disk standard (up to 1TB)
• Supports multiple interfaces: 3xUSB , RS-485, RS-232, GPS port, wired Ethernet, IR Remote Control
• Optional wireless 802.11 b/g with diversity antennas1
• Provides camera power for 4 cameras; interface cables to power jacks supplied
• Optional External EDGE/GPRS/CDMA/WI-FI Modules for cellular/specialized wireless Transmission
• GPS function tracks speed and geographic limits (optional external GPS receiver)
• Power Supply : 10V~36VDC with Surge Protection, Voltage Regulator, programmable Delay on/off
• Temperature: -40ºF~131ºF (Operating), -4°F ~ 185ºF (Non-Operating)
• System warnings: System fail LED : HDD full, HDD/Sys Temp, Fan fail, HDD fail LED : HDD power off, HDD failure Email Alert: Multiple email notifications in response to alarms and events. (Requires real time network connectivity though cellular or WiFi service)
• Event Alarm: Fan failure, hard disk temperature, hard disk failure, hard disk full, hard disk removed, power loss (after power is restored), network loss, GPS loss, GPS speed, GPS fencing, G sensor limits
• Watchdog Function: Reboots DVR automatically if required

Product information:

• Two Channels of real time D1 video and audio recording
• Built-in GPS module tracks speed, location and geographic limits
• Ultra compact size (300 g / 0.67 lbs, 117 x 63 x 38.4 mm / 4.6” x 2.5” x 1.5” )
• Recording Rate : up to 30 FPS per channel at D1 resolution
• H.264 compression format for efficient storage and network utilization
• Special Graphical User Interface design for use with small-sized mobile/portable monitors
• Molex connectors for shock & vibration resistance; interface cables to BNC, RCA and power jacks supplied
• Alarm Inputs & Outputs: 2 & 1 (alarm output is form “C”)
• Plug-and-play recording on completely shock proof SD card with security cover (up to 32GB)
• Swap out SD recording media, or export video through convenient USB port
• USB port supports a mouse for easy setup, programming, playback and export
• Supports multiple interfaces: USB 2.0, RS-232, wired Ethernet, IR Remote Control
• Optional External EDGE/GPRS/CDMA/WI-FI Modules for cellular/ specialized wireless Transmission
• Event Alarm: SD card error, SD card temperature, SD card Full, SD card Off, Power Loss, Network Loss, GPS loss, GPS speed, GPS fencing
• Email Alert: Multiple email notifications in response to alarms and events (requires real time network connectivity though cellular device)
• Power Supply : 10V~36VDC with Surge Protection, Voltage Regulation, camera power, programmable Delay ON/OFF for flexible control
• Temperature range: -14°F~131°F Operating, -40ºF ~ 185ºF (Non-Operating)

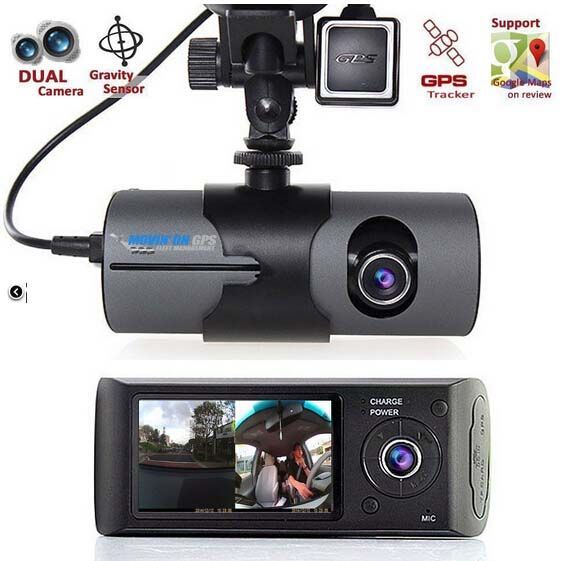

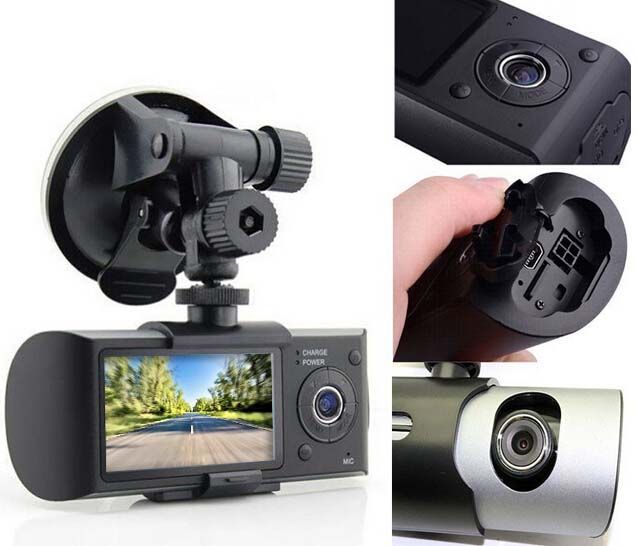

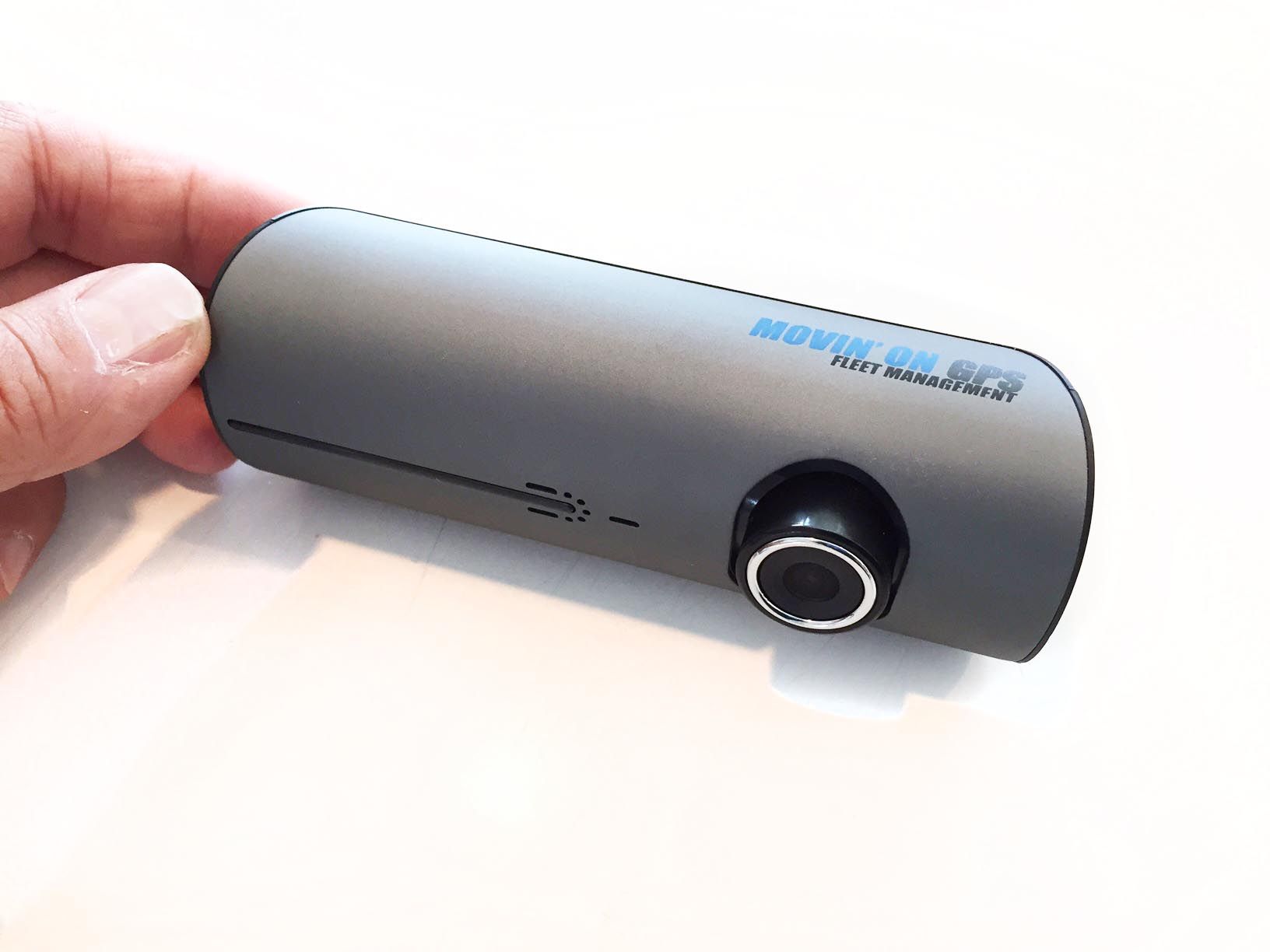

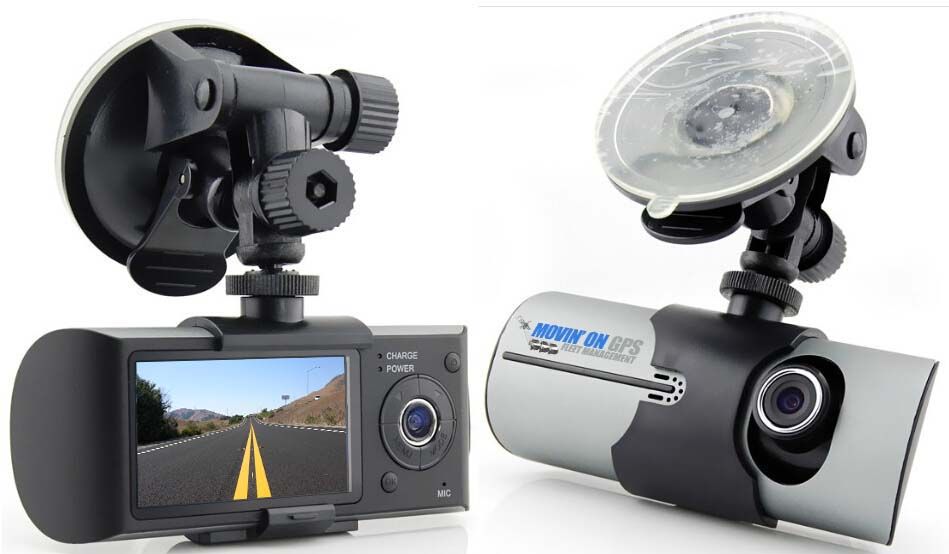

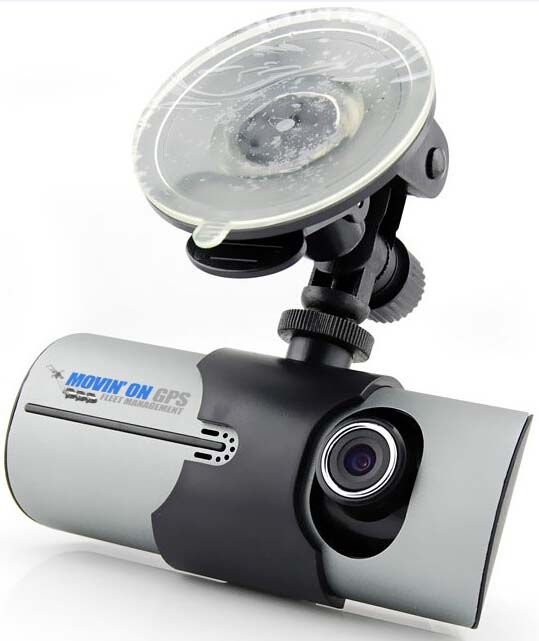

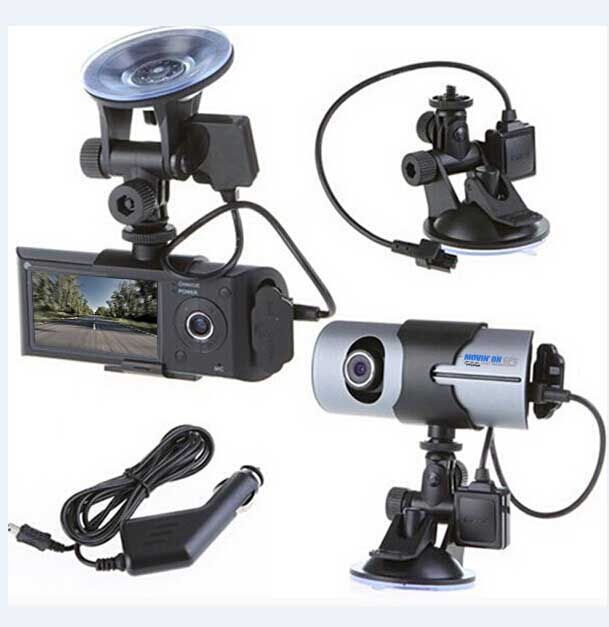

The DC2 dual-lens dashboard video camera offers two-channel recording (both inside and outside vehicle), GPS position and speed logging, an adjustable front lens, and many other features.

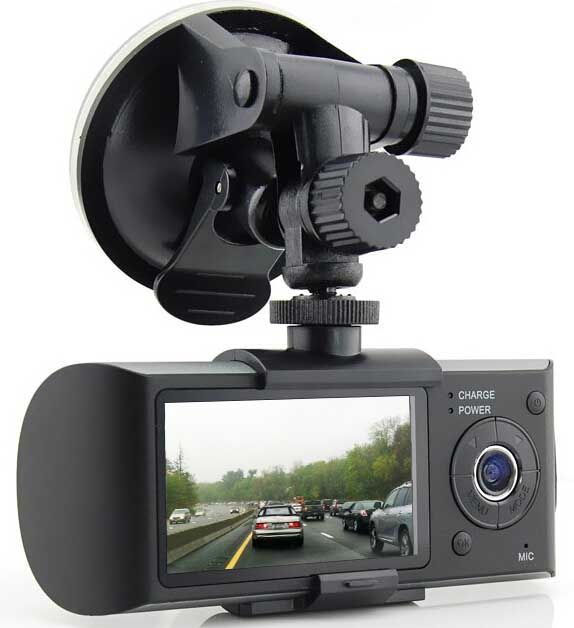

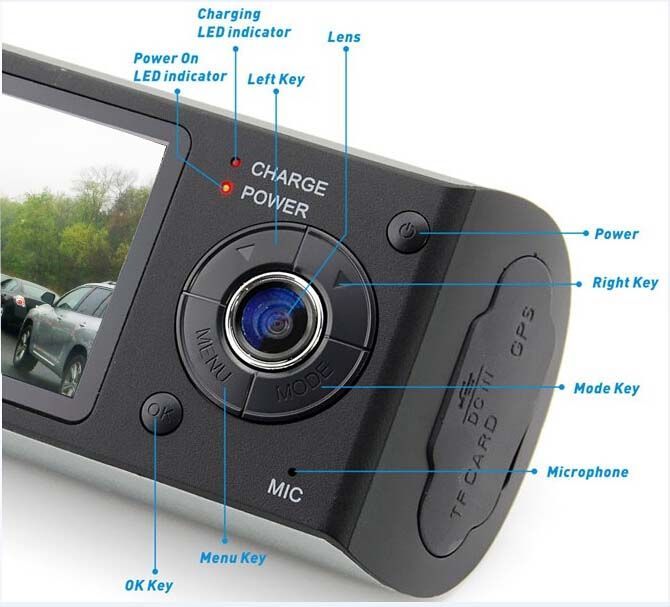

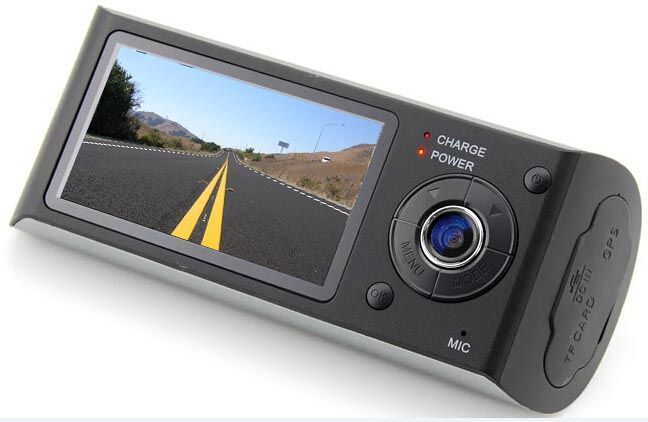

The DC2 is extremely easy to set up and use. By default, the display on the DC2 shows you video from both the front and rear lens. Once attached to your windshield, adjust the positioning of the camera itself to point correctly on the inside of the vehicle, and then simply move the front lens up or down to accurately capture video out the front windshield as well. We like that the inside-facing lens is cleanly built in to the body of the camera, in the center of the menu buttons.

Attach the supplied GPS antenna to the DC2 to also capture your vehicle’s location, how fast it was going, and more, along with the video. The DC2 comes with easy to use X2 software to playback video and GPS position logs.

When you remove the memory card from the DC2 and place it into your computer or card reader, the software is already there on the memory card. Pretty convenient! X2 works with Windows 2000/XP/Vista.A Micro SD memory card (8, 16, or 32GB – Class 6 or higher) is required for use with the DC2.

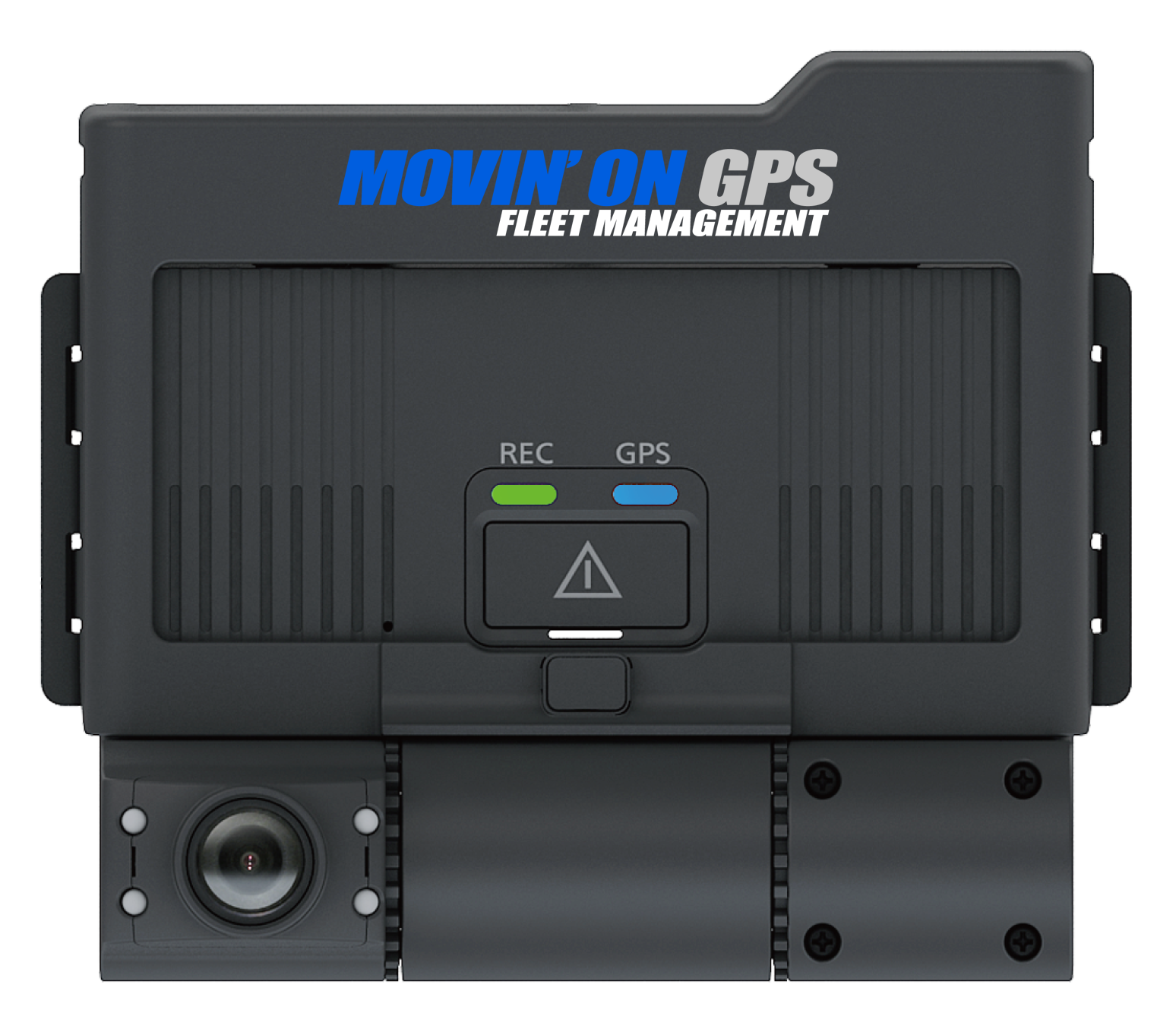

The MOSS-DC3 is a high performance drive cam with a number of onboard features, including GPS, motion detection while parked, G-sensor, manual event, emergency event triggers, and optional Wifi/LTE for remote access (Availability TBD).

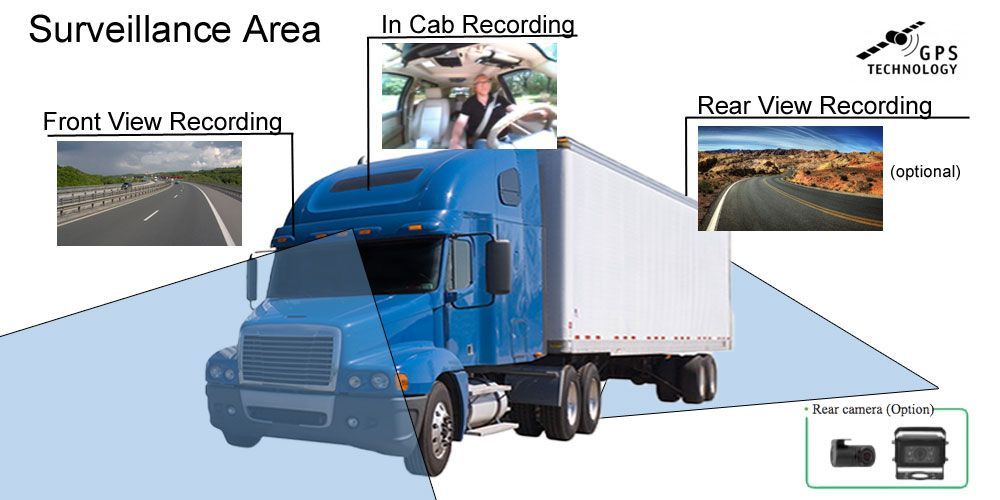

The DC3 has HD video quality for front and driver recording plus the option of connecting a third external camera. The DC3 is truly the perfect drive cam for fleets and professionals, with flexibility to spare. All at a price you can afford!

The DC3 has all the features you would expect from a commercial grade drive cam, and more. For instance, the tamperproof case keeps the camera adjustments in place and the SD cards from being removed. Event files can be easily exported from a USB port on the device.

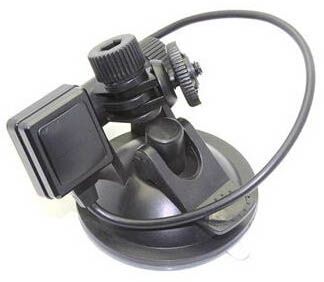

The mounting cradle is also designed to accommodate all vehicle types, including trucks, sedans, and tractor trailers. Since the dual lens is on an adjustable mount, the angle of the windshield can be taken into account during setup. To learn more, download the user guide below.

Entry-level video surveillance for small vehicles

Features:

• Single channel A/V input/output
• Features motion detection and manual recording
• Video format: MPEG-4, Video for AVI
• Resolution: 640X480 @ 30f/s
• Supports SDHC SD card up to 16GB
• Supports most videos with audio
• Powered by: DC 9V-12V

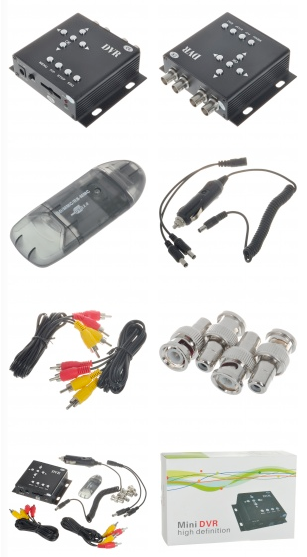

Package includes:

• 1 * Mini DVR
• 2 * AV cable
• 4 * BNC adapter
• 1 * Car cigarette power adapter (12~24V)
• 1 * SD card reader
• 1 * English/Chinese user manual

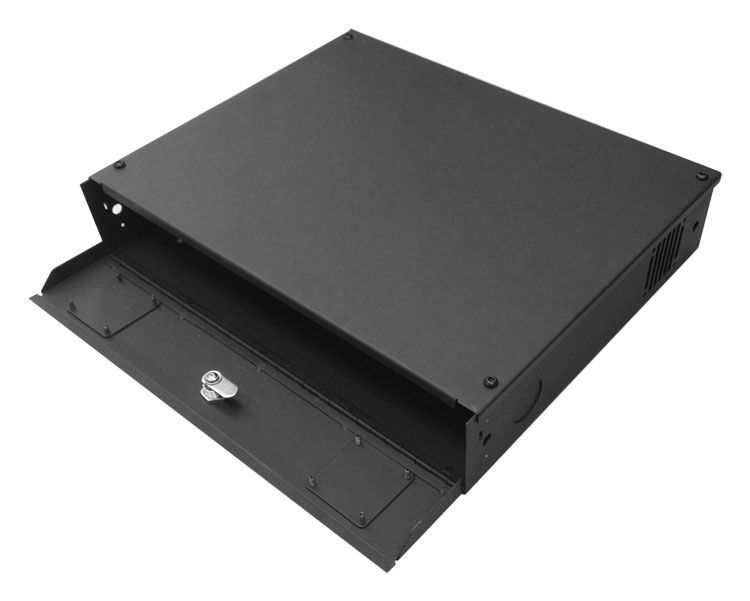

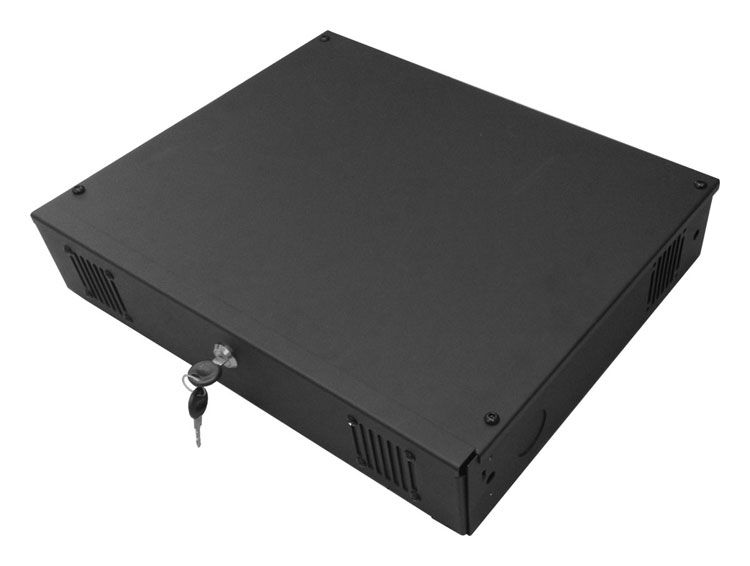

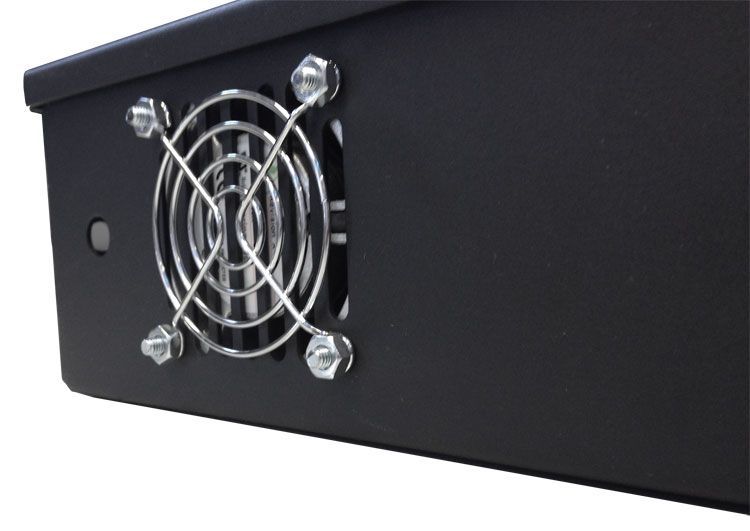

The Mobile DVR Lock Box is the perfect addition to your mobile DVR video surveillance system. Not only does the lock box secure your valuable DVR equipment from theft, it also locks away the threat of tampering by employees. To keep the unit cool, the Mobile DVR Lock Box has a cooling fan to keep air running through the enclosure.

Specifications

• Interior dimensions – 17” W x 13.8” D x 3” H
• Lockbox is mountable on 4 sides for mobile applications
• Rackmountable with a 2RU overall height
• Securing strips included for DVR in mobile applications
• Removable lid secured with security hardware
• Single fan included and mounting locations for up to four fans

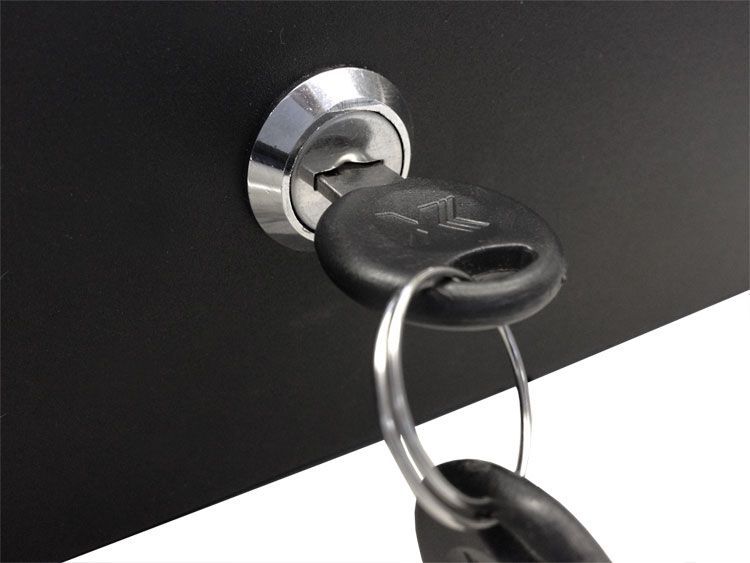

• Key locked hinged front door
• Multiple vents with removable vent blockers for active or passive thermal management
• Black static resistant powder coat finish
